G-COMIN TL-500 Electric Telescopic Light Tower
Battery-powered electric telescopic light tower with up to 35,000 lm on battery (65,000 lm on AC), a 5.3 m electric mast and single-person deployment — a silent, zero-emission alternative to diesel light towers.
Description
The G-COMIN TL-500 (TopGo Series) is a portable, battery-powered LED light tower designed for single-person operation. An intuitive handheld controller electrically raises the telescopic mast from 1.23 m to a maximum height of 5.3 m (a 4.2 m variant is also available), while the fully rotatable lamp head and adjustable beam angle deliver 360-degree site coverage.
Four battery lighting modes let you balance output against runtime: Turbo (35,000 lm, 10+ h), Standard (18,000 lm, 18+ h), Balanced (10,000 lm, 39+ h) and Eco (3,000 lm, 114+ h). Connected to mains via the optional X5-320-56BH AC driver, output rises to a stepless-dimmable 65,000 lm. Three switchable beam patterns — Distance, Mid-range and Close-range — match the light distribution to the task.
Power comes from up to three hot-swappable D24-500 lithium-ion battery packs, each recharging in under 50 minutes, so downtime is minimal. With 0 dB operation and zero fumes, the TL-500 eliminates the diesel, trailer, and maintenance costs of traditional generator light towers.
Built for harsh sites, it is IP65 rated with Level 8 gale-force wind resistance, a 10 cm wading depth, corrosion-resistant construction and a quick-eject mast retraction feature. The triple-wheel coaxial design, multi-level self-locking support legs and dual-axis levelling mechanism handle rough terrain, and at 52 kg (excluding batteries) it fits in a standard SUV.

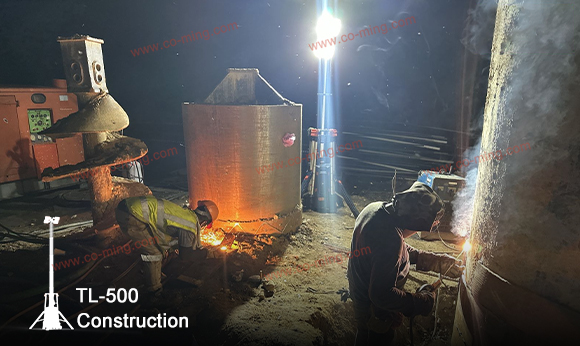

Selected Case Studies
Easily carried, powerfully bright — your reliable lighting companion, wherever you go.
We have unparalleled advantages
Single-Person Rapid Deployment
Adapts To All Terrains
Wind Resistance Level 8

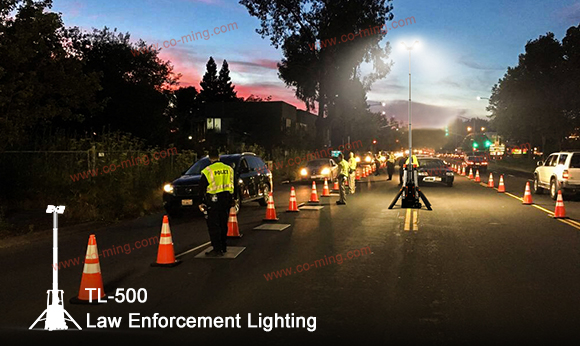

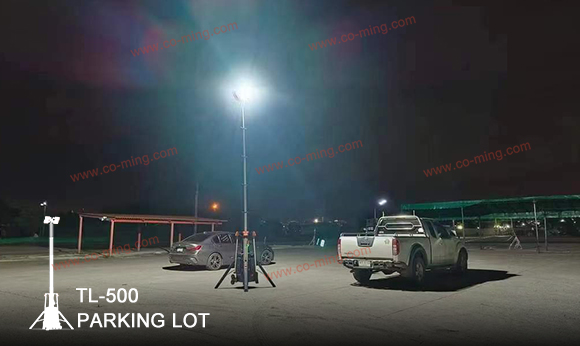

Versatile For Various Sites
Beam Angle For Versatile Lighting Area
(AC Powered)

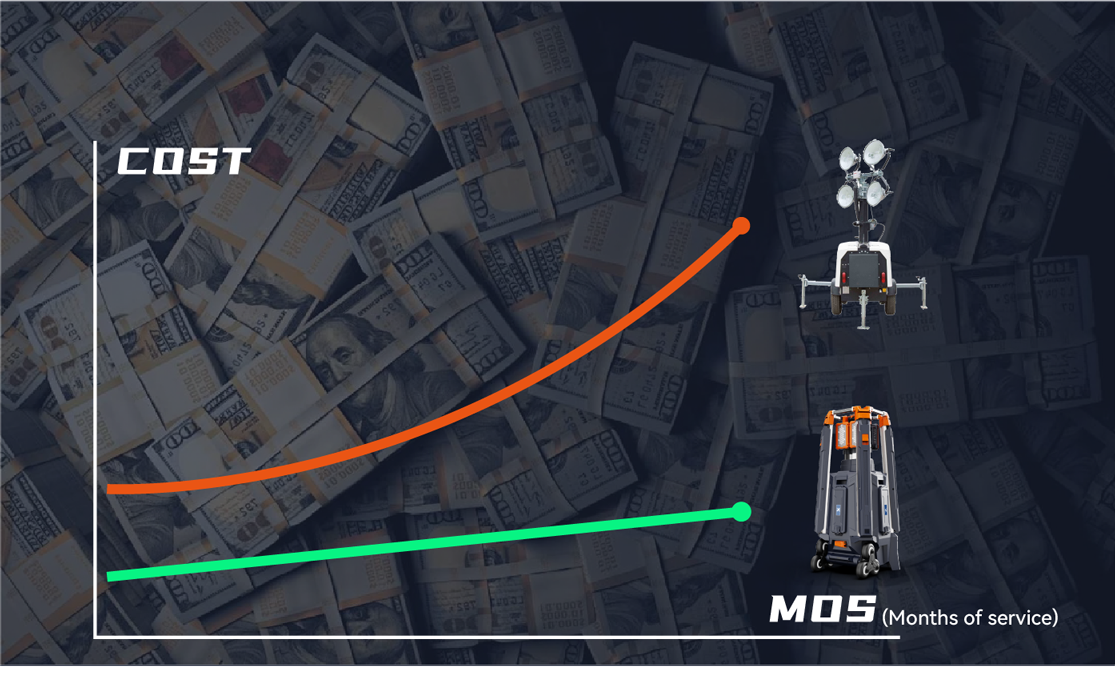

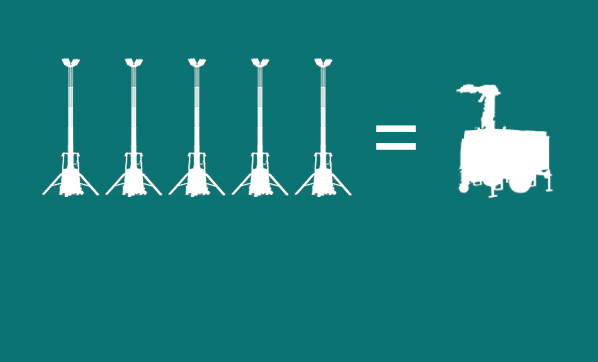

TL-500 cuts both equipment and life-cycle consumption / transportation / maintenance costs compared to the traditional fuel generator light tower.

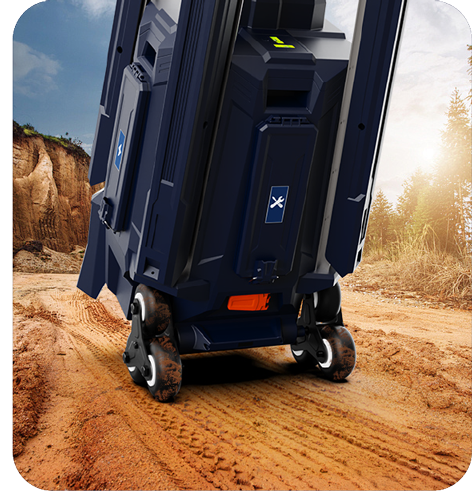

Easy one-person transport on any terrain.

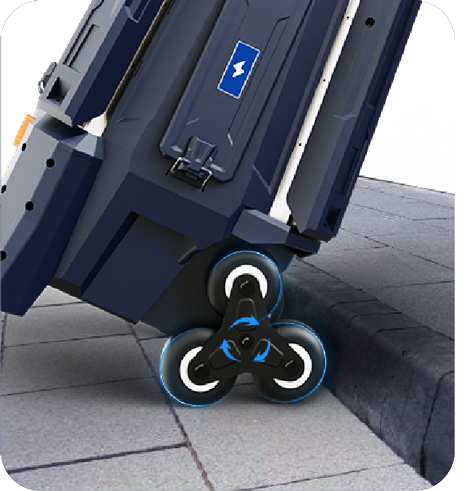

Climbs heights without a forklift if necessary.
Stays stable on muddy ground with maximum contact surface.

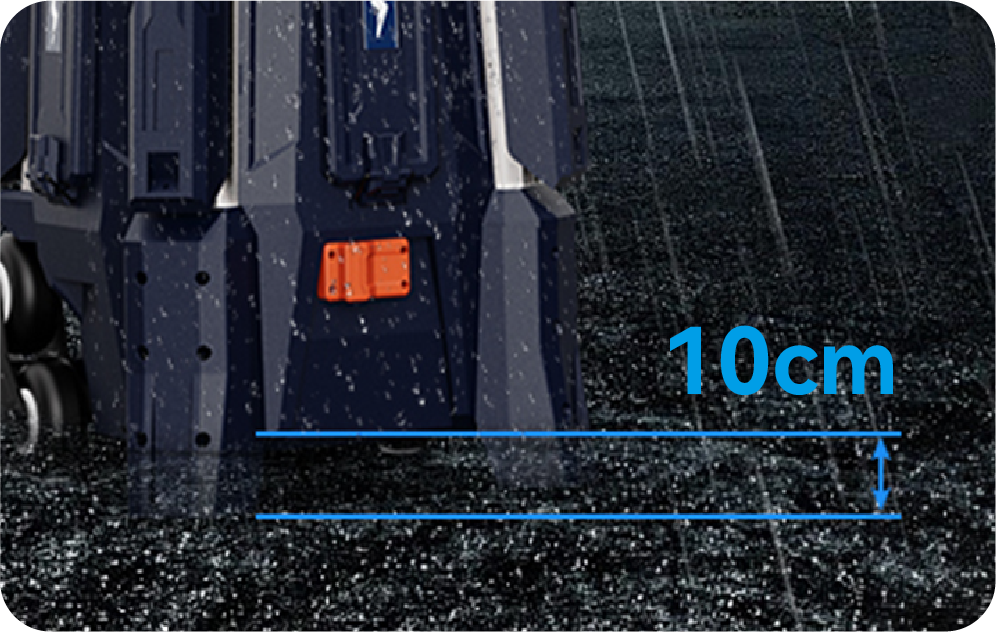

Wading depth up to 10cm refers to the water line mark on the light tower body.

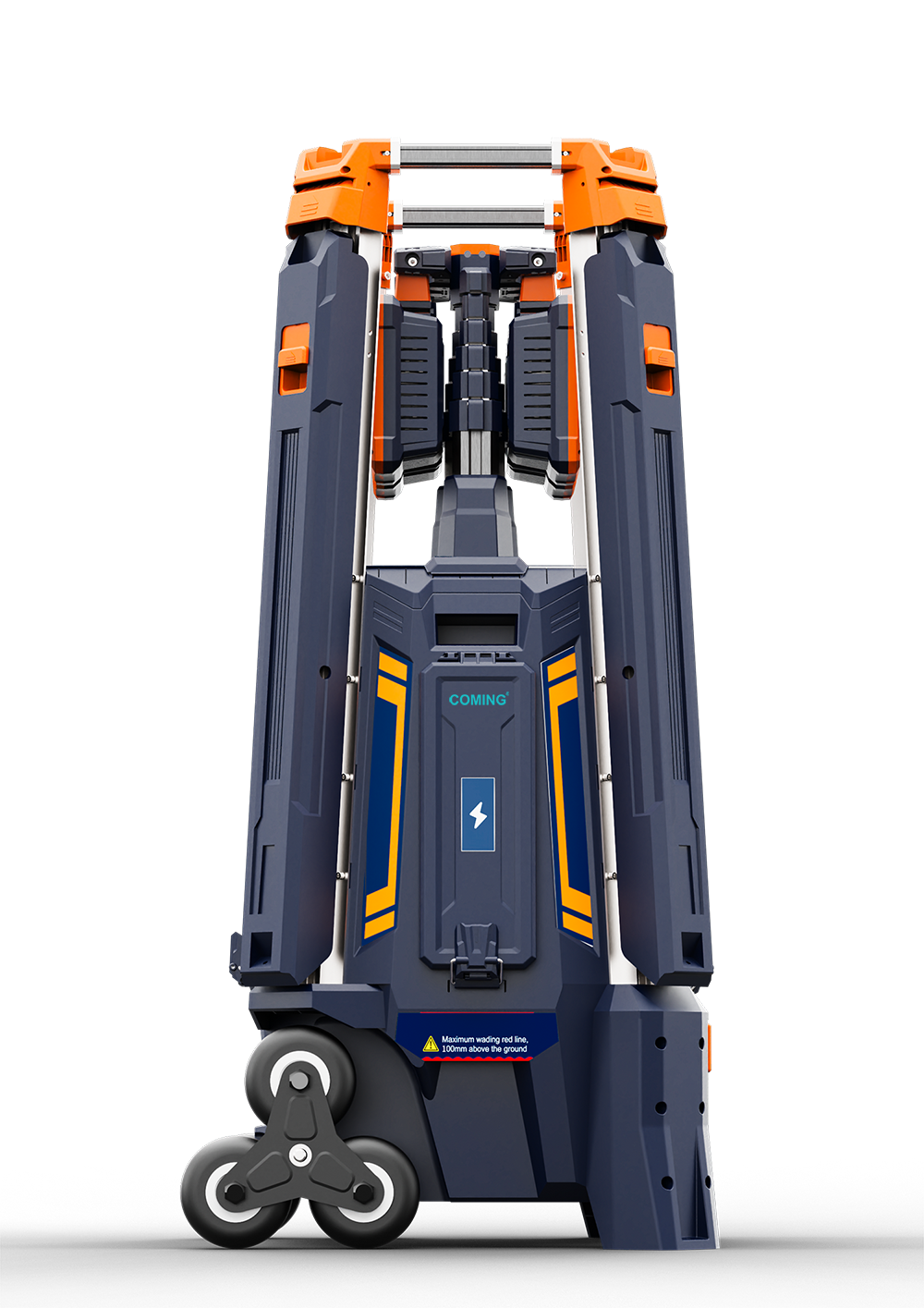

High Elongation Ratio For Easy
Storage And Transport

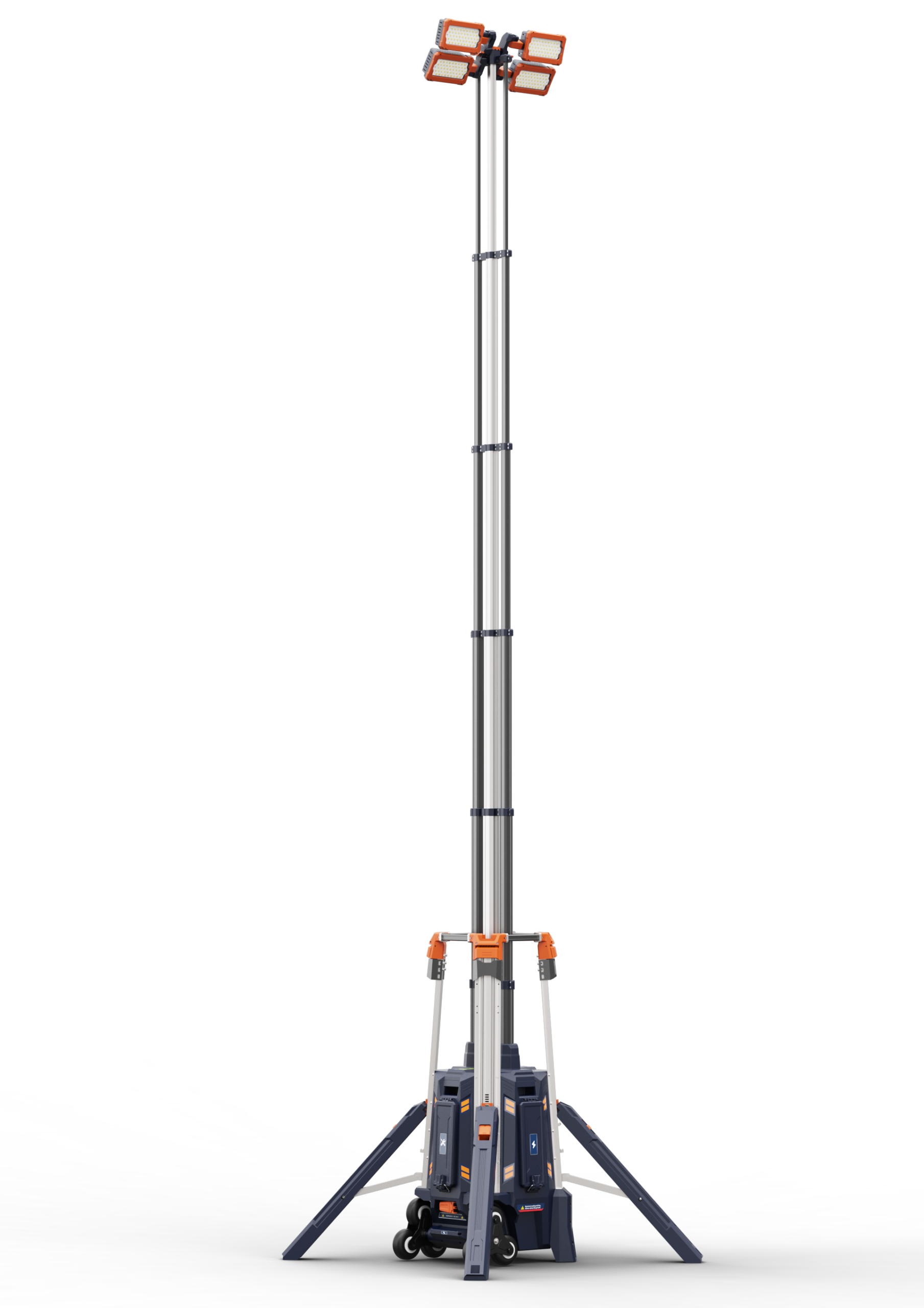

5.3m

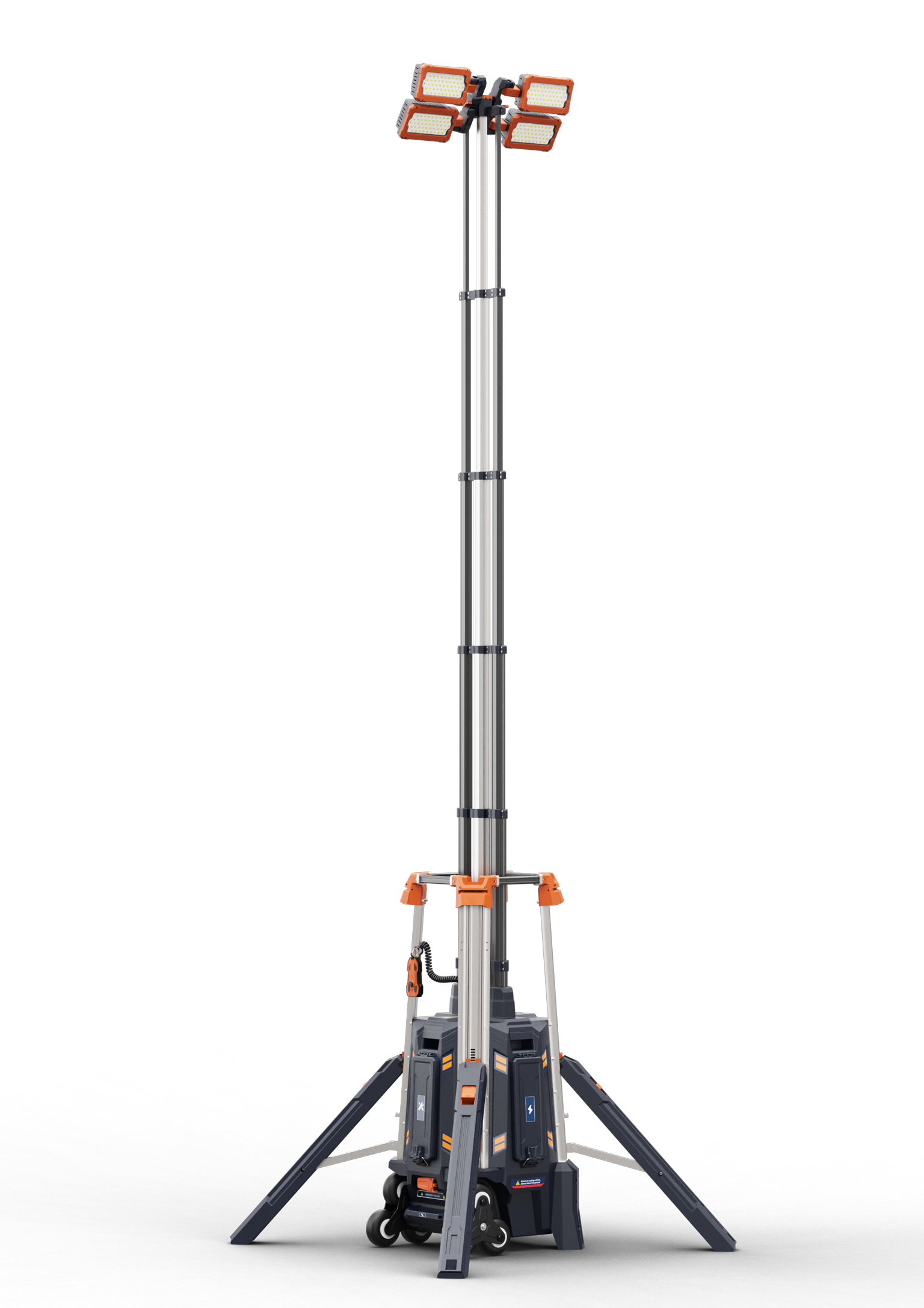

4.2m

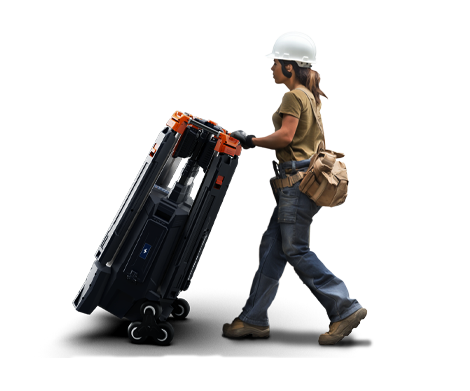

Only one operator is needed to transport, deploy, and adjust lighting.

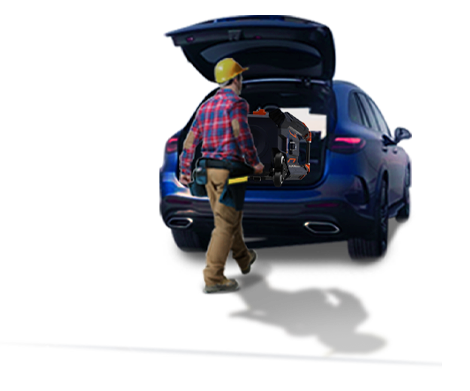

For quick deployment in emergencies this equipment fits easily into standard SUVs for single-person loading.
| Illumination | |
|---|---|
| Maximum output (battery) | 35,000 lm (Turbo mode) |
| Maximum output (AC power) | 65,000 lm, stepless dimmable (X5-320-56BH driver) |
| Lighting modes | Turbo 35,000 lm / Standard 18,000 lm / Balanced 10,000 lm / Eco 3,000 lm |
| Beam patterns | Distance (concentrated), Mid-range (balanced), Close-range (wide diffused) |
| Head adjustment | Fully rotatable lamp head with adjustable beam angle for 360° coverage |
| Power & Endurance | |
| Battery system | Up to 3 x D24-500 lithium-ion packs, hot-swappable |
| Runtime | Turbo 10+ h / Standard 18+ h / Balanced 39+ h / Eco 114+ h |
| Charge time | Under 50 minutes per D24-500 pack |
| AC operation | Optional X5-320-56BH mains power driver |
| Noise level | 0 dB (silent, zero-emission operation) |
| Physical | |
| Mast height | 1.23 m to 5.3 m (electric telescopic; 4.2 m variant available) |
| Net weight | 52 kg (fitting only, excluding batteries) |
| Dimensions (folded) | H 1230 x W 540 x D 600 mm |
| Dimensions (deployed) | H 5300 x W 1090 x D 1110 mm |
| Mobility | 3-wheel coaxial design, multi-level self-locking support legs, dual-axis levelling |
| Deployment | Single-person transport, deployment and adjustment; fits standard SUV |
| Packaging | Carton 1435 x 640 x 640 mm, gross weight 66.5 kg |
| Environmental | |
| Ingress protection | IP65 |
| Wind resistance | Level 8 gale-force winds |
| Wading depth | Up to 10 cm |
| Construction | Corrosion-resistant materials; quick-eject emergency mast retraction |
