Milesight EM500-PT100 LoRaWAN Platinum Temperature Sensor

Description

Ensuring Safety by Getting Temperature Checks

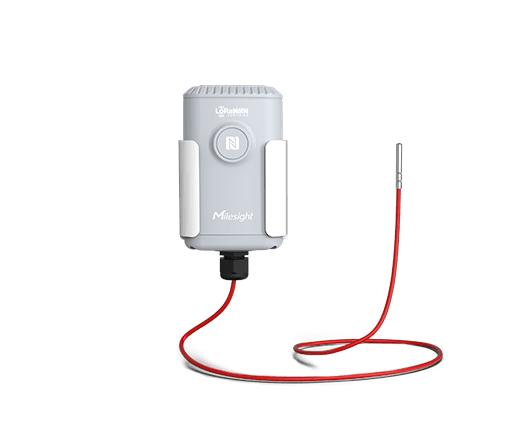

The Milesight EM500-PT100 is a LoRaWAN® platinum resistance temperature sensor designed for industrial environments. Produced with precious platinum material, it offers exceptional temperature resistance and stable, precise temperature measurement from -200°C to 800°C — making it ideal for industrial factories, cold chain monitoring, and experiment labs.

Key Features

Stable & Precise Measurement – Platinum RTD element for high accuracy across extreme temperature ranges (-200°C to 800°C)
Impressive Resistance – IP67 waterproof, UV resistant, and vibration resistant for harsh industrial environments
10-Year Battery Life – Low-power LoRaWAN® technology with 10-minute reporting cycle
LoRaWAN® Wireless Deployment – Long-range, secure, low-power wireless connectivity
Milesight D2D Support – Device-to-device control for advanced automation scenarios
NFC Configuration – Easy setup via mobile phone or PC
Customizable Probe – Straight tube probe with customizable cable length (standard 1.5m)
Versatile Mounting – Wall, pole, or DIN rail mounting options

Technical Specifications

Wireless Technology	LoRaWAN®, Milesight D2D
Frequency	CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923
Connection Type	3-wire connection
Measurement Range	T050: -200°C~50°C \| T200: -50°C~200°C \| T500: -50°C~500°C \| T800: -50°C~800°C (Customizable)
Resolution	0.1°C
Battery	19000 mAh Li-SOCl₂ (ER34615)
Battery Life	Up to 10 years (10 min interval, 25°C)
Operating Temperature	-30°C~70°C
Ingress Protection	IP67
Housing	ABS + PC, Grey
Weight	362.7g (with battery, mounting bracket and probe)
Dimensions	105.4 × 71 × 69.5 mm
Probe Cable Length	1.5m (Customizable)
Approvals	CE, FCC, ISED, ICASA, Telec, RoHS
