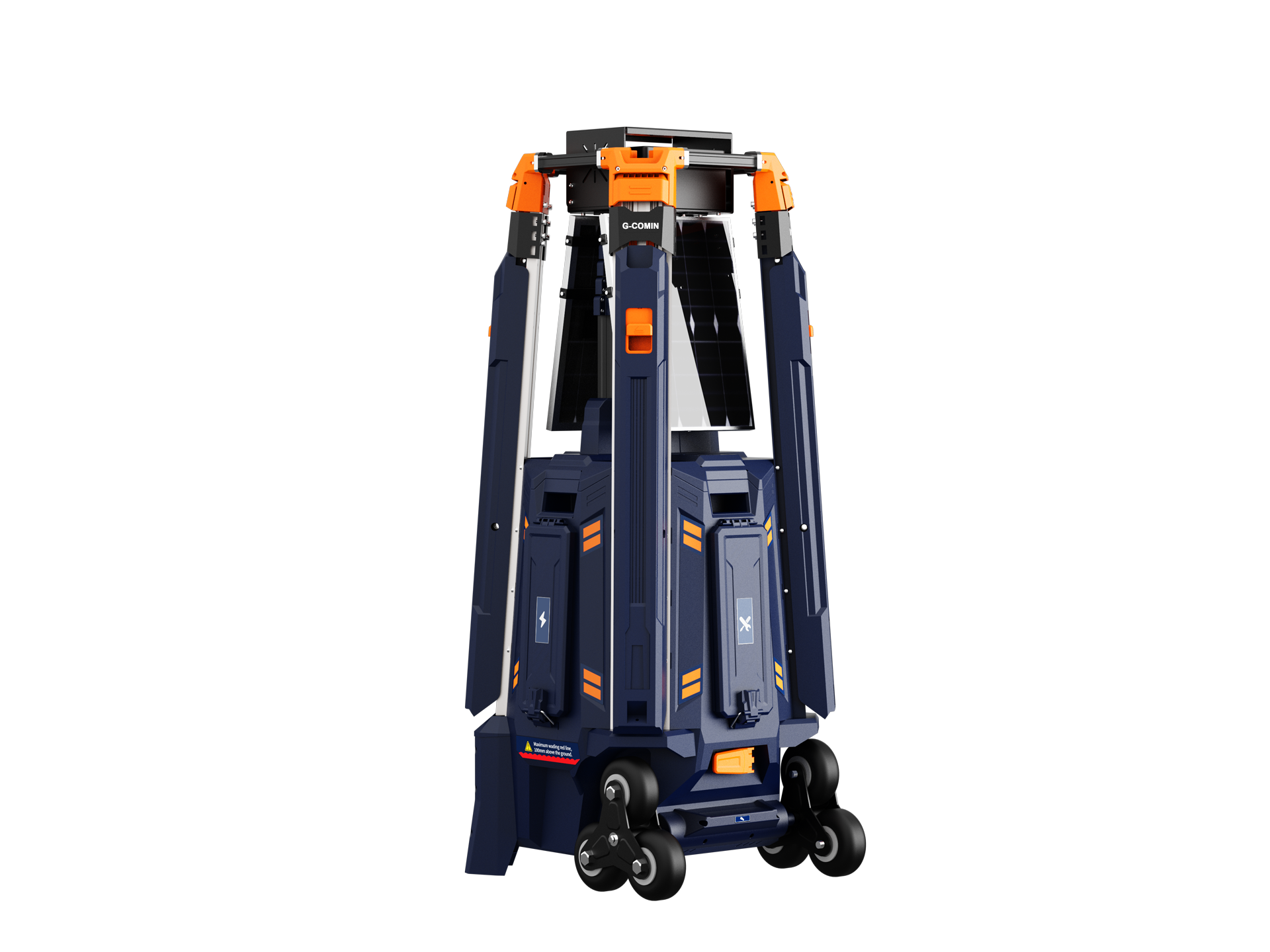

G-COMIN GD-500 Portable Device Power Platform
The flagship MateGo power platform: a 5.0 m telescopic mast with integrated solar charging, up to three D24-500 battery packs and 100W of 12V/5V output — powering site cameras and monitoring devices for 13.5–450 hours off-grid.
Description

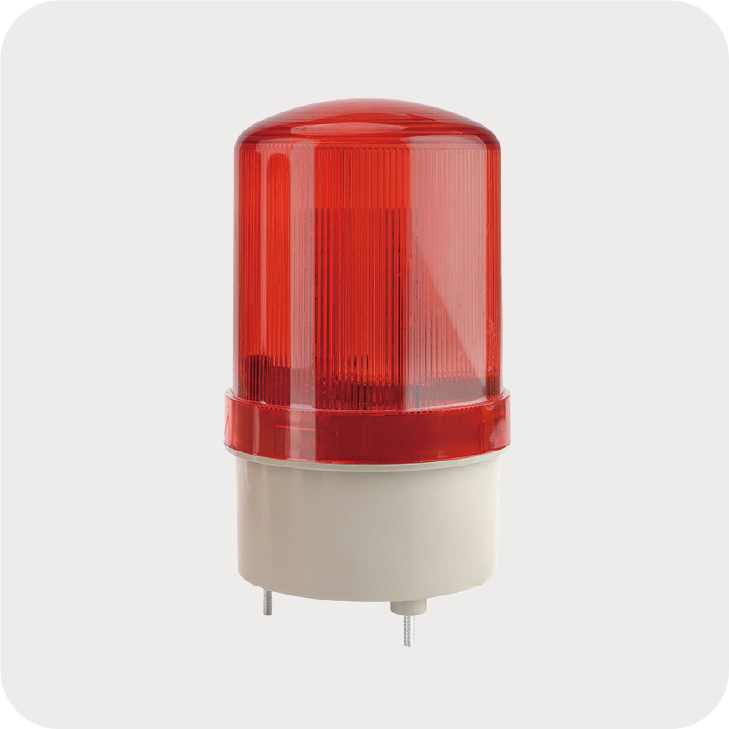

The G-COMIN GD-500 is the largest and longest-running portable device power platform in the MateGo series, built for plug-and-play deployment of CCTV cameras, radar, communication equipment, environmental sensors, surveying instruments and illuminated signs on construction sites, rail and road projects, and remote monitoring locations. It combines battery, mains and solar power options in a single wheeled, single-person-operated unit.
Power delivery is rated at 100W maximum output through 12V 9A and 5V 3A outputs plus dual rainproof USB ports, with multiple adapters for IR indoor, IR outdoor and PTZ cameras. Up to three D24-500 lithium-ion battery packs deliver 13.5–450 hours of typical runtime per set, and the integrated solar panels supply auxiliary charging — supporting 24-hour continuous power for ≤6W 12V/5V devices with zero diesel, zero trailer, zero maintenance costs and zero carbon emissions, in complete silence (0 dB).

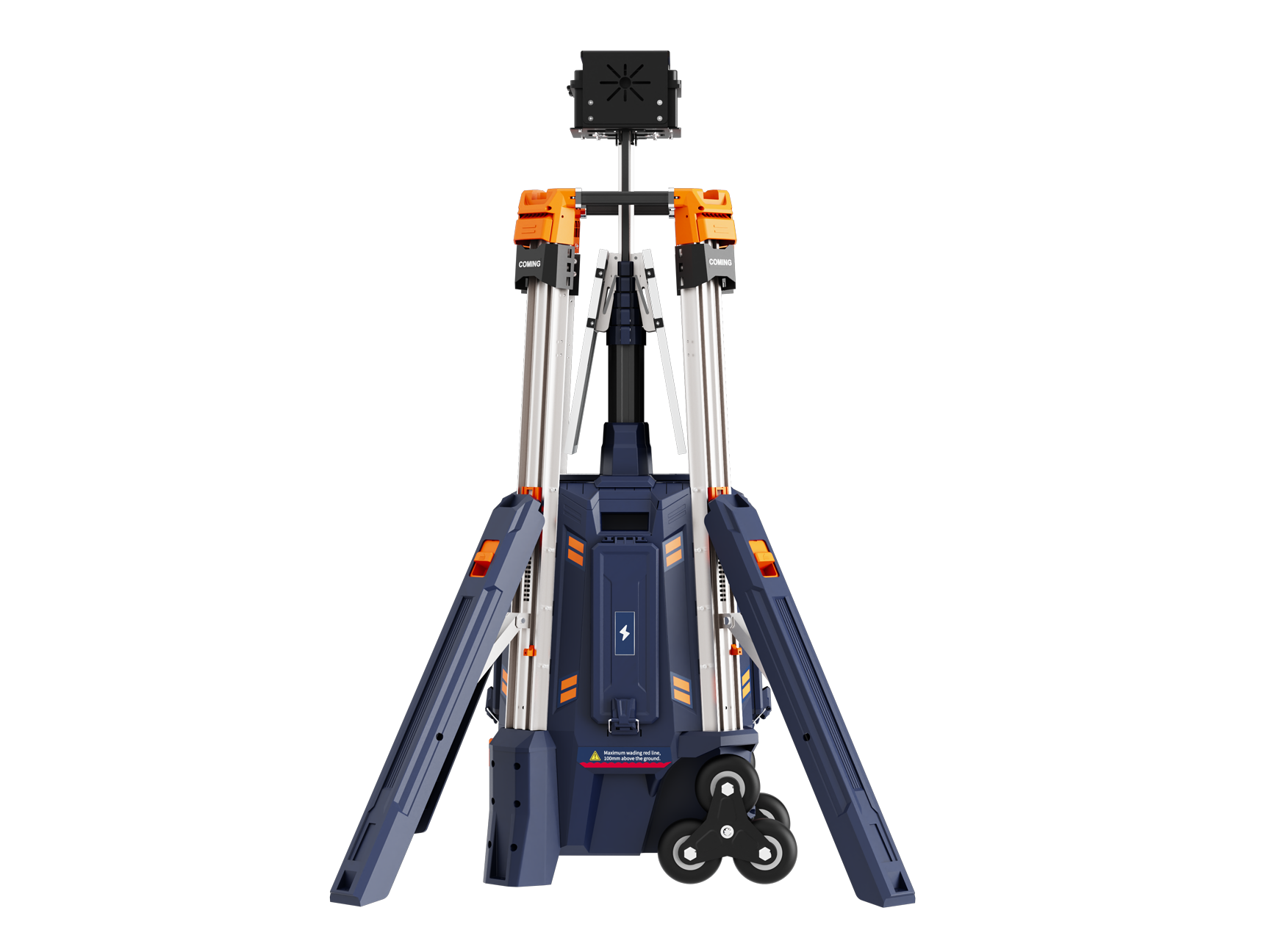

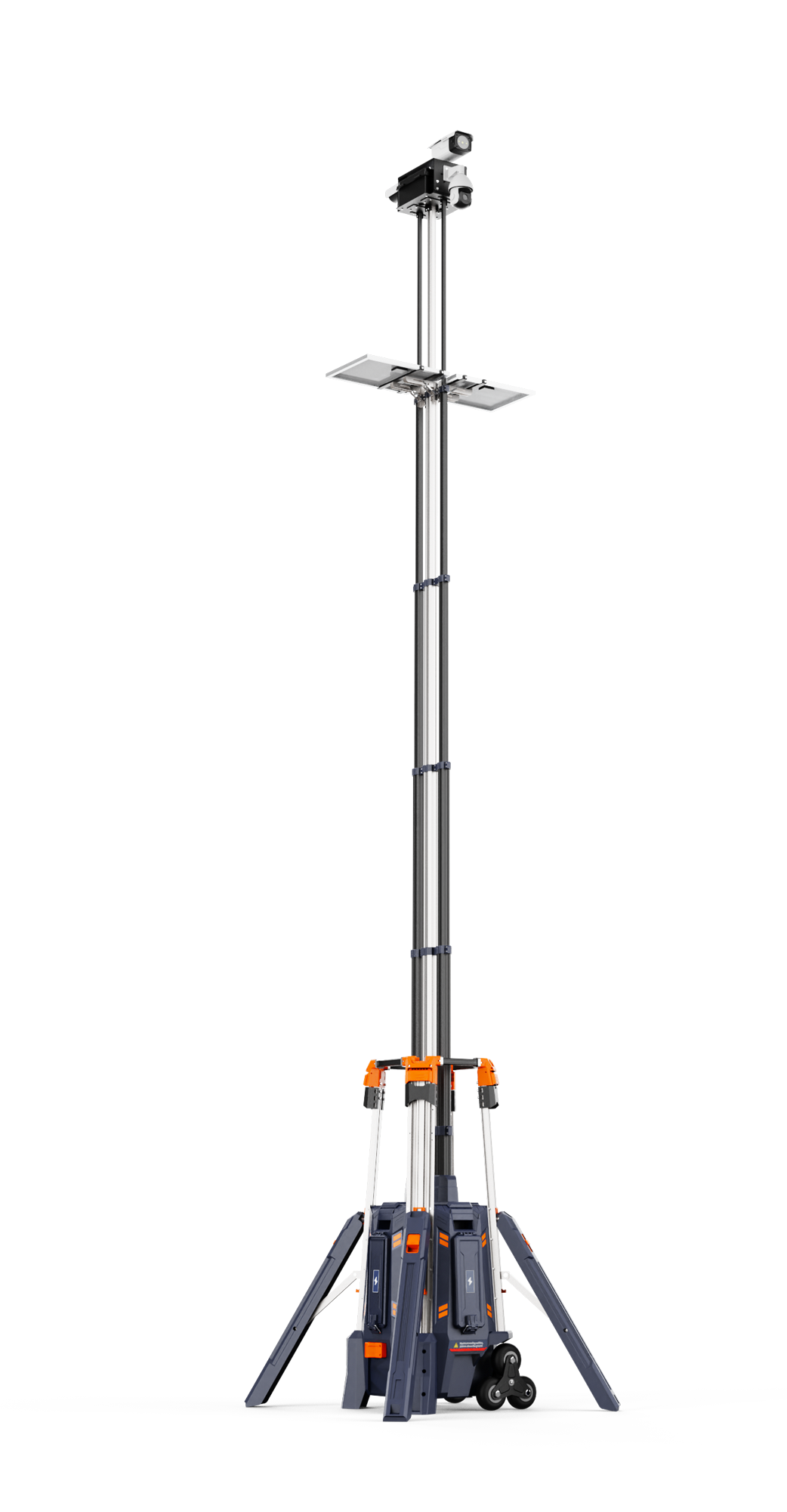

The telescopic mast extends from 1.3 m to 5.0 m and carries a maximum device load of 10 kg on a detachable, customisable mounting bracket with left, right, top or triple-side installation options. A triple-wheel chassis with self-locking legs adapts to all terrains and stays stable on muddy ground, and the folded unit (1305 mm high, 57.3 kg) fits into a standard SUV for rapid single-person loading, transport and redeployment.
Built for harsh environments, the GD-500 is IP65 weatherproof, corrosion-resistant, rated for level 8 winds and a 10 cm wading depth, and operates from -10°C to +50°C. An optional X5-320-56BH mains driver provides AC operation where grid power is available.

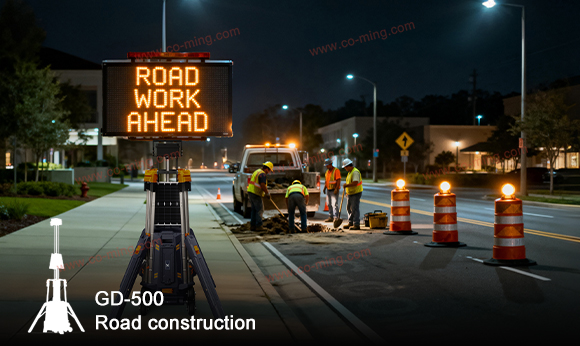

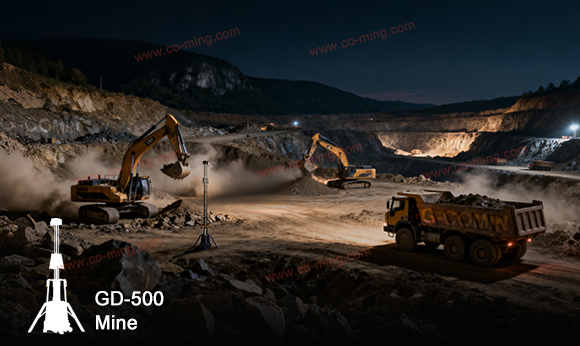

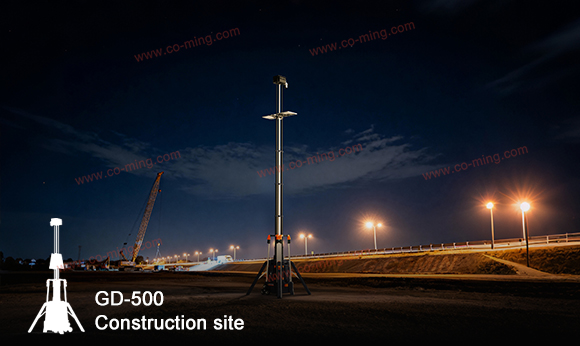

Selected Case Studies
We have unparalleled advantages
Adapts To All Terrains
Wind Resistance Level 8
Versatile For Various Sites
EASY OPENING & QUICK INSTALLATION
Engineered for efficient operation and easy portability across diverse working environments.
maximum load of 10KG

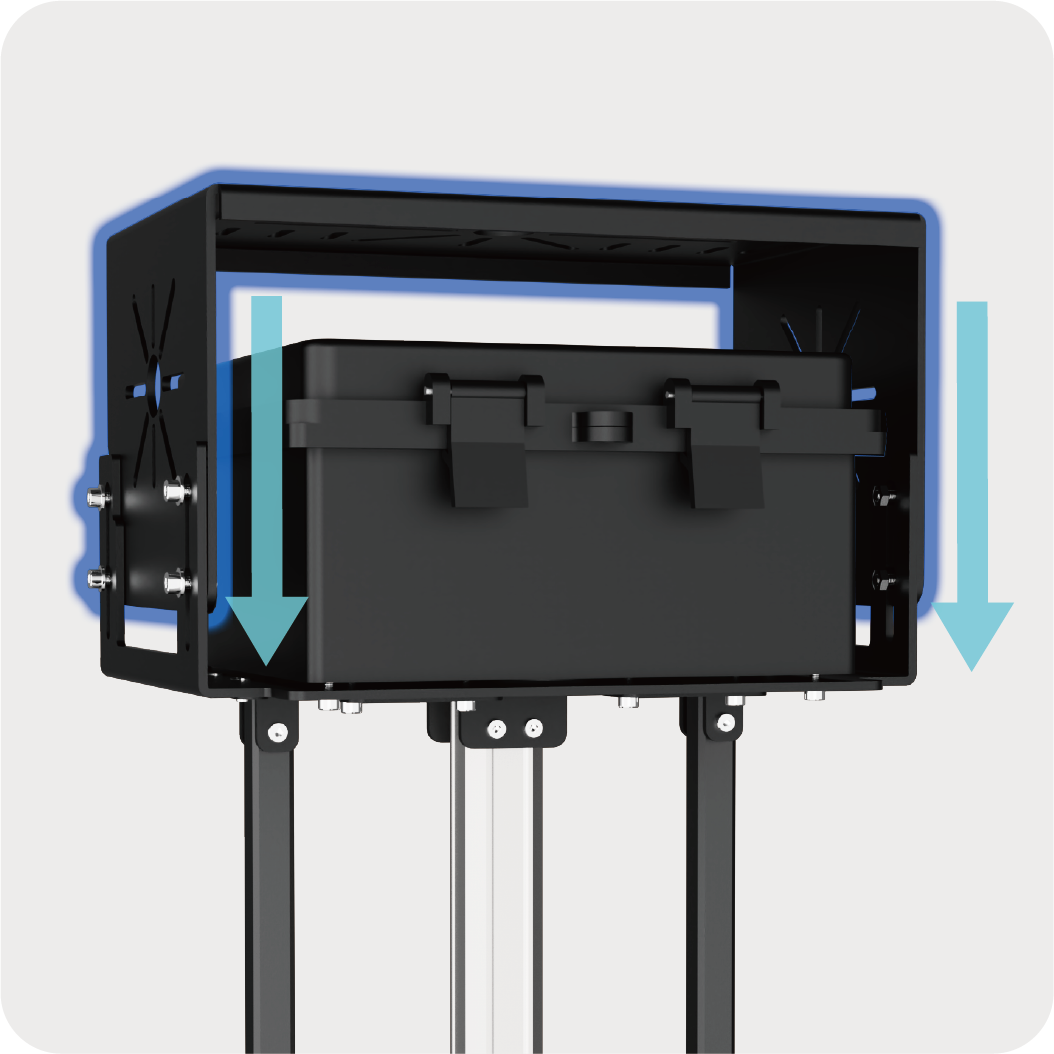

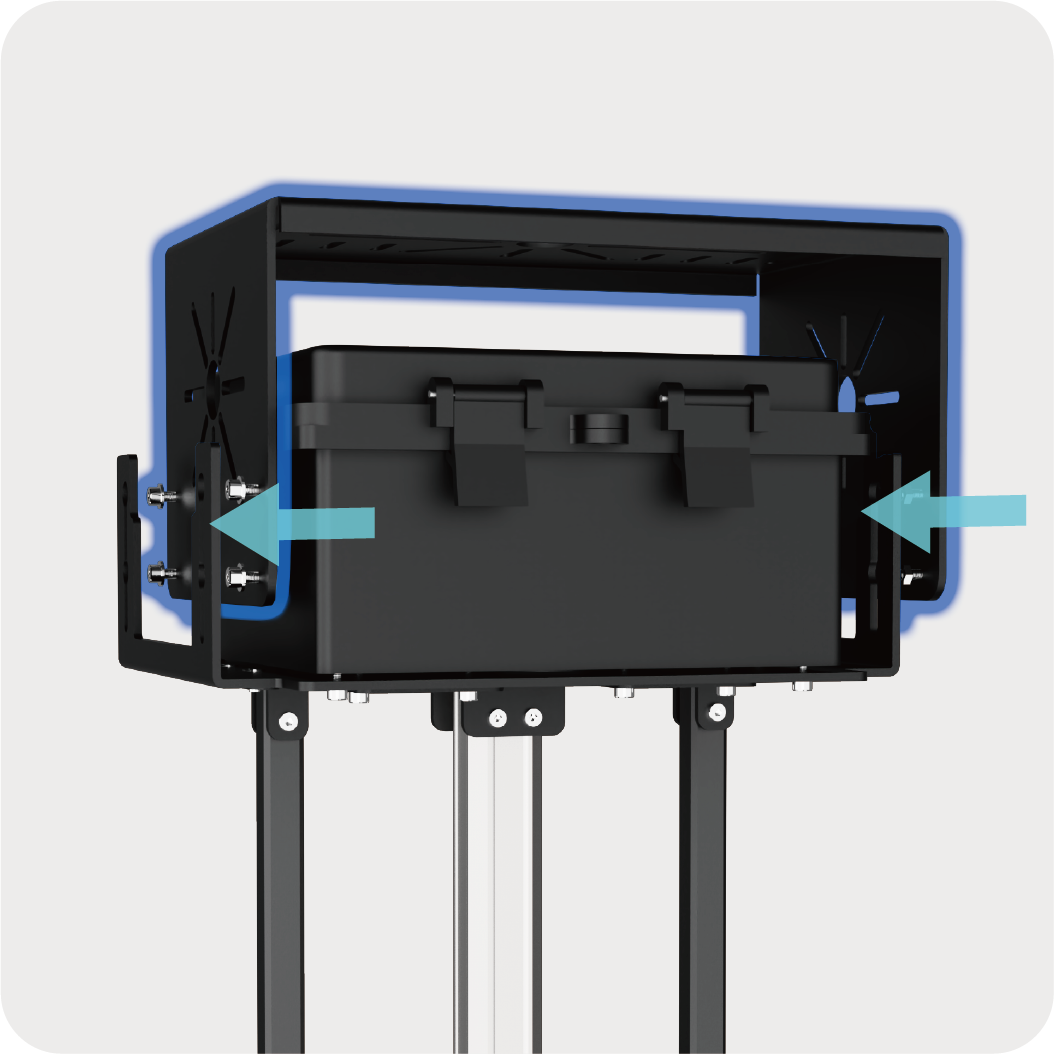

Detachable Bracket Design
The mounting bracket can be easily attached or removed, providing flexible installation and easy transport.
Flexible Mounting
Multiple mounting holes fit most devices and can be customized.

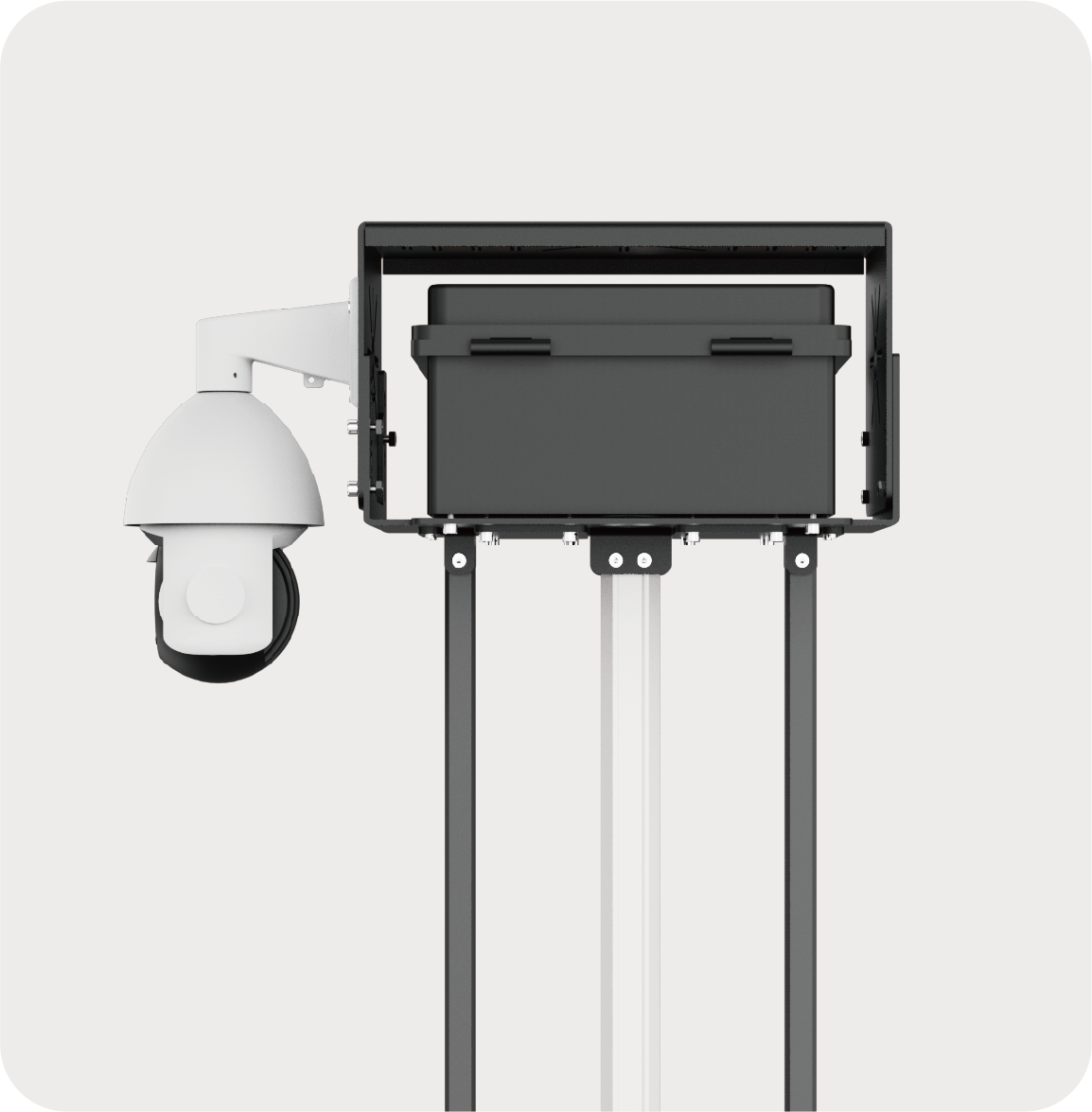

Left installation

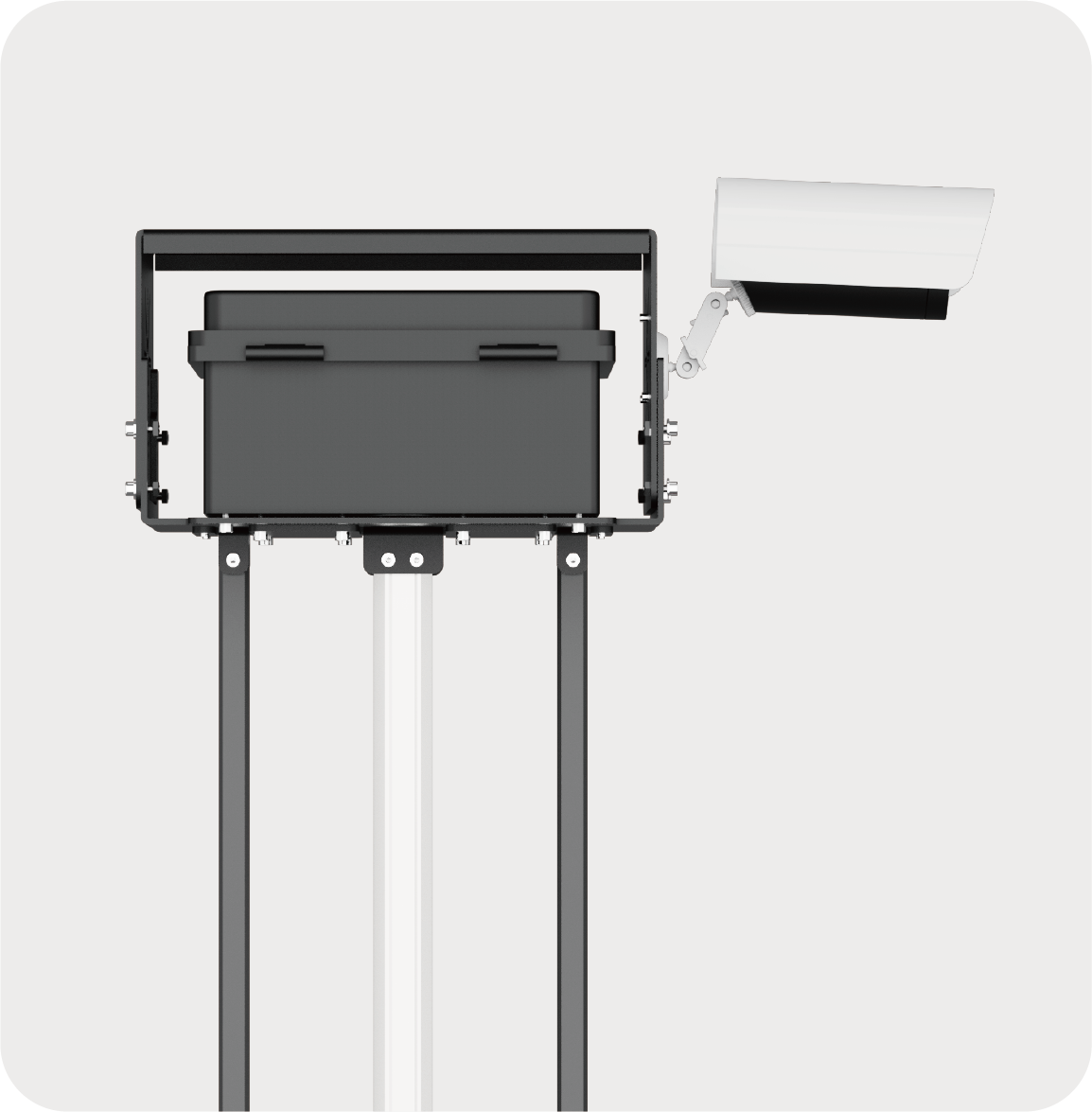

Right installation
Mounted on top

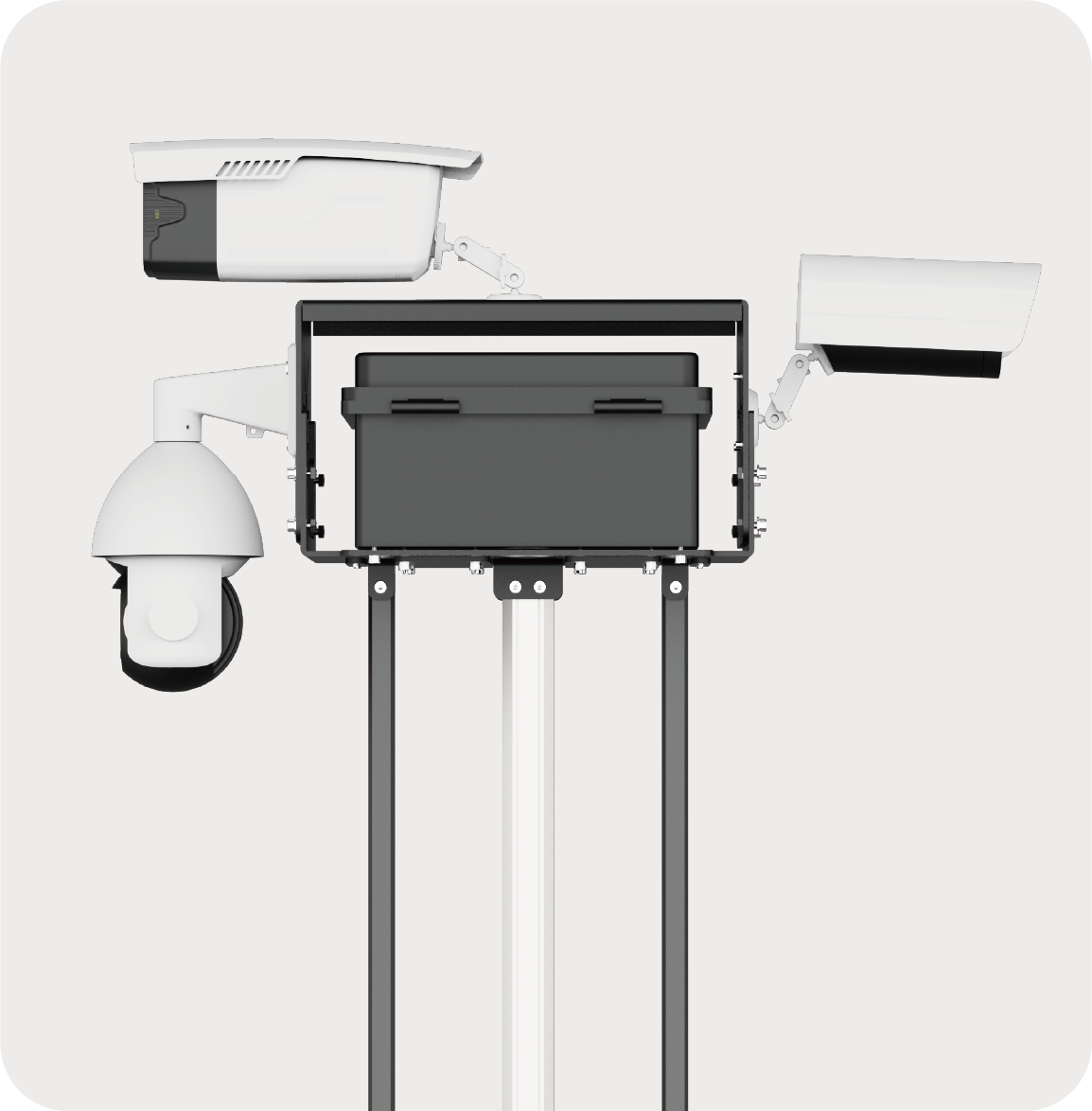

Triple-side installation

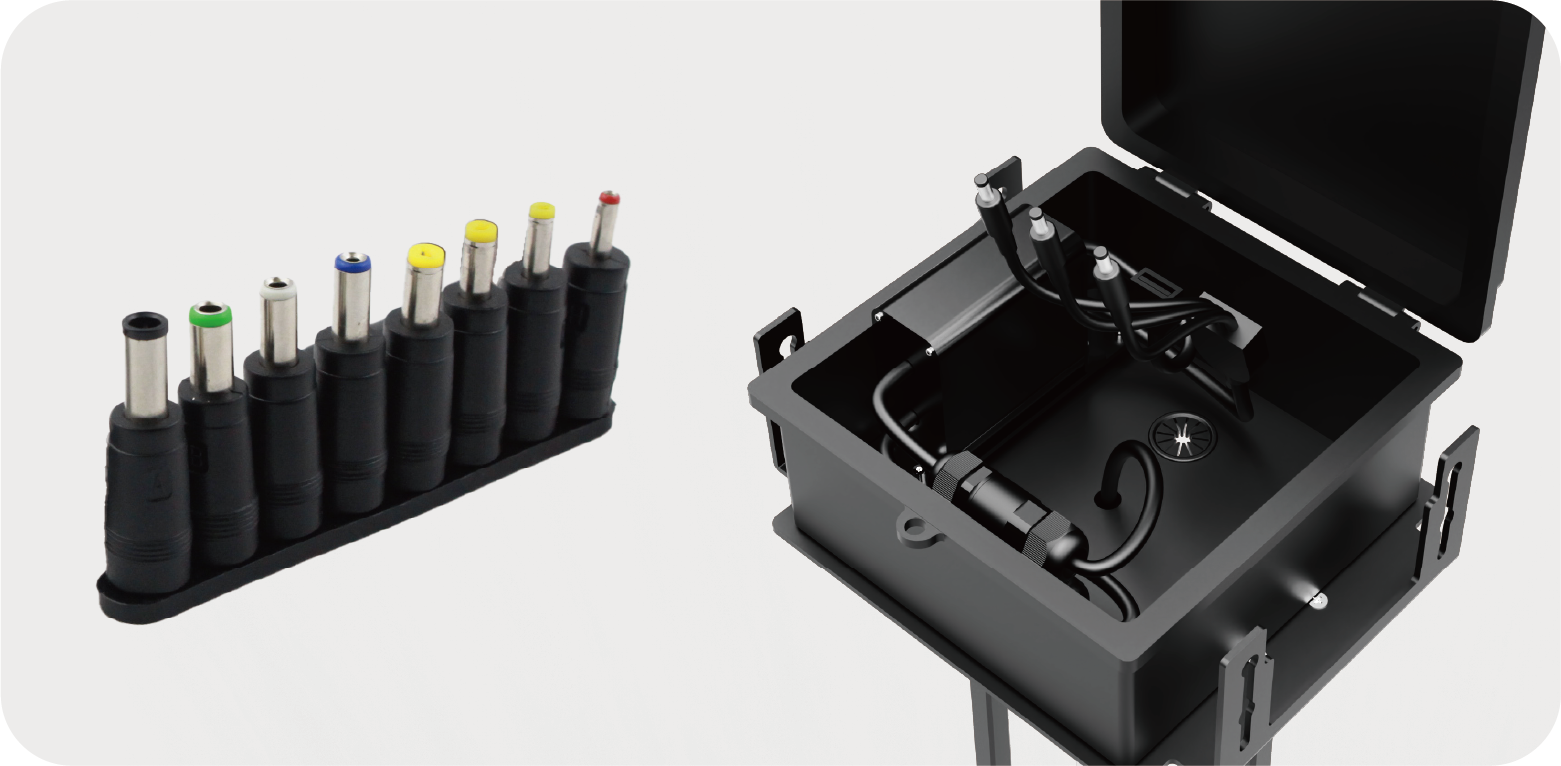

Multiple Adapters
Equipped with multiple adapters, ensuring hassle-free use.

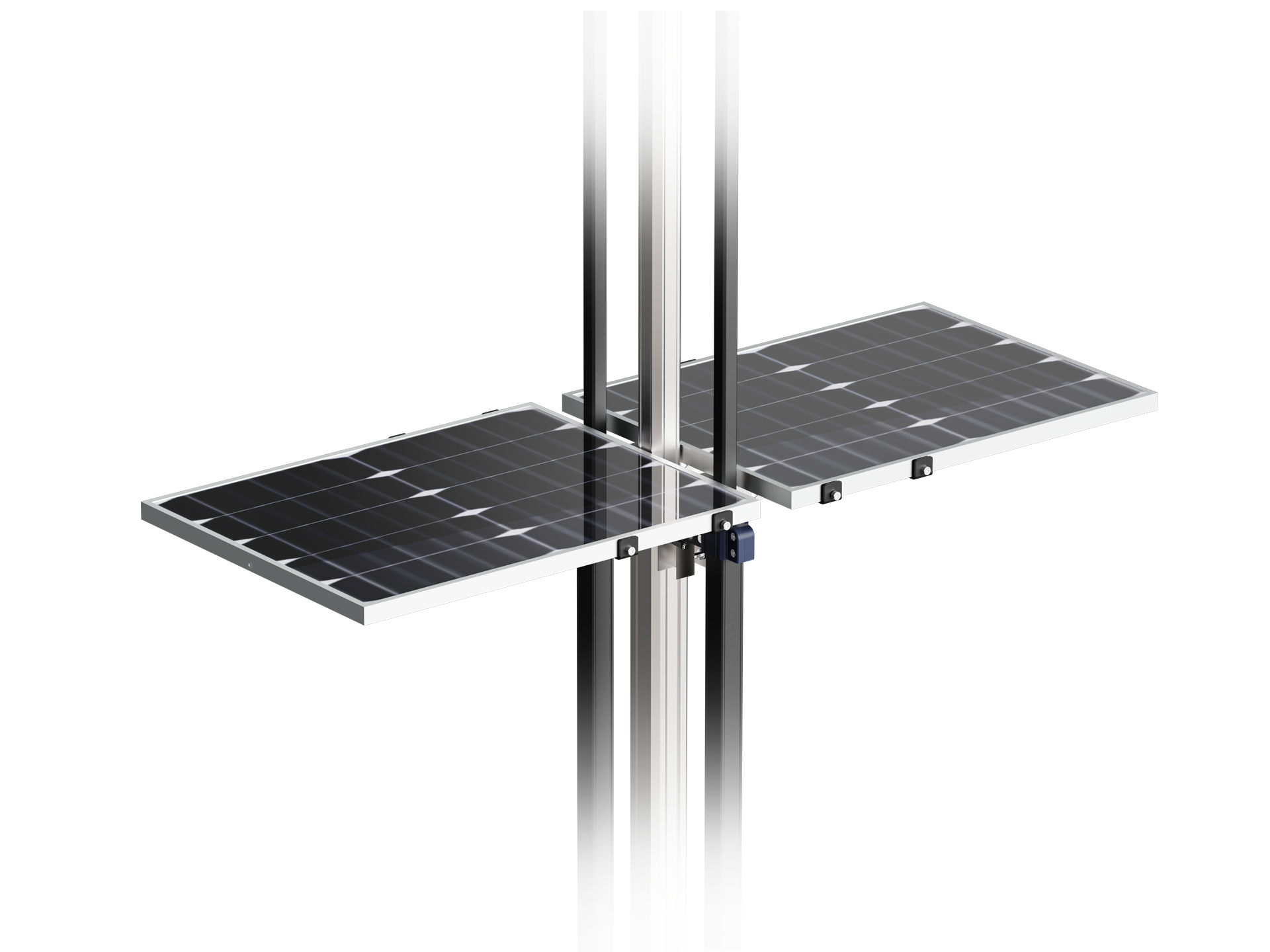

SMART SOLAR POWER SUPPLY
Efficient use of natural energy to reduce operating costs

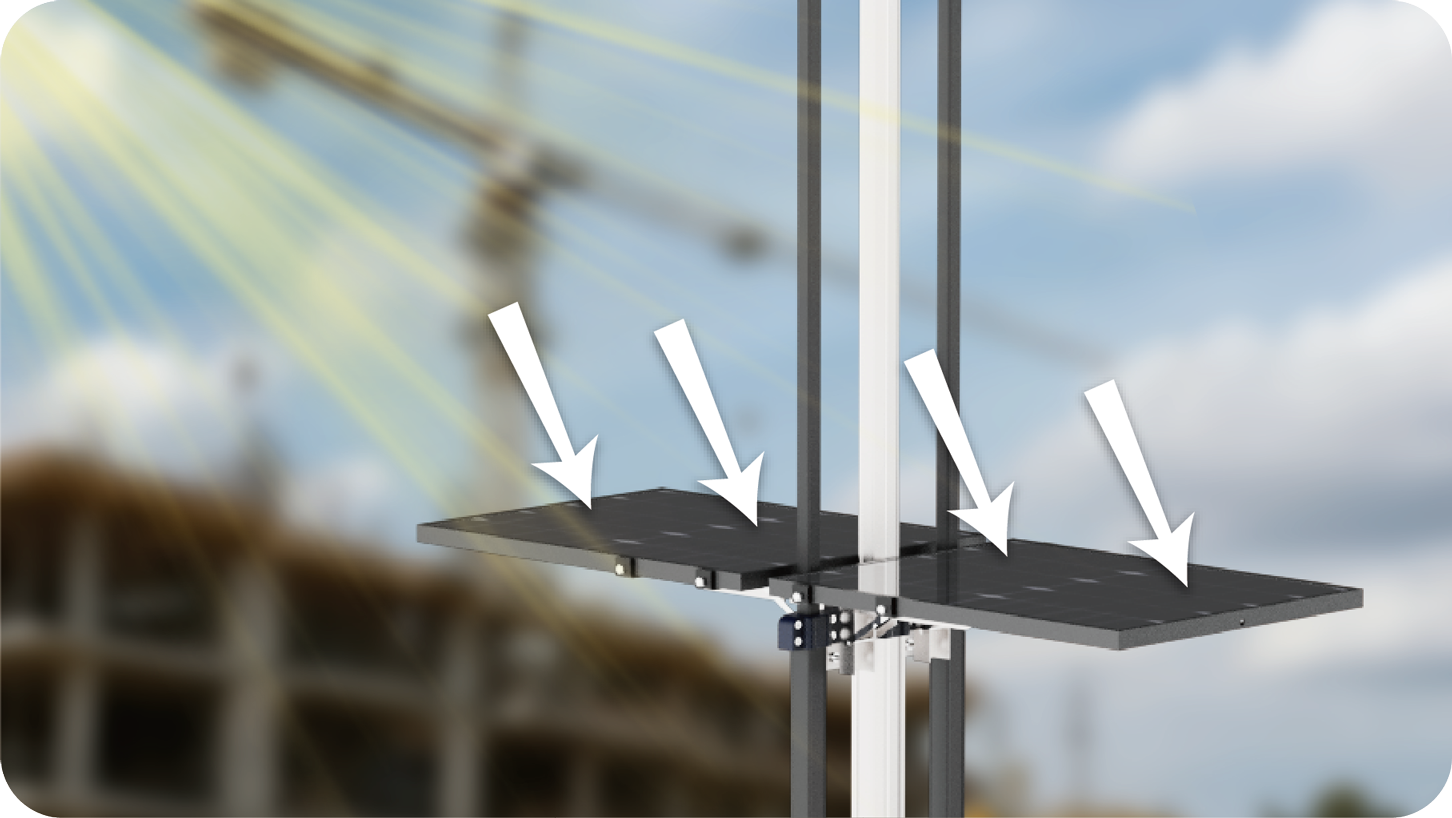

Auxiliary Power

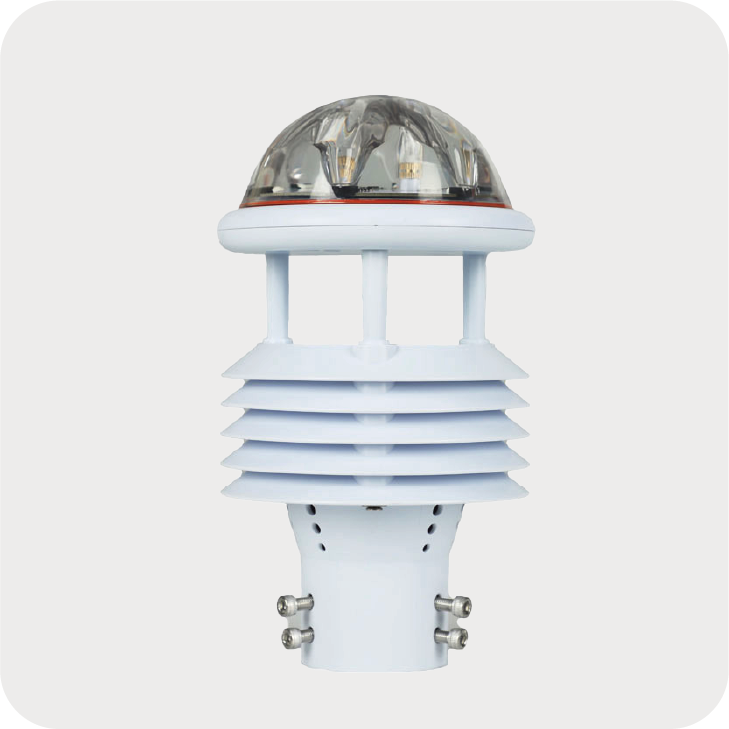

The solar panel converts sunlight into electricity, providing stable power for small devices.
High-Efficiency Solar Power Solution
Supports 24-hour continuous power for ≤6W 12V / 5V devices, delivering higher efficiency and lower energy consumption.
High Elongation Ratio For Easy
Storage And Transport

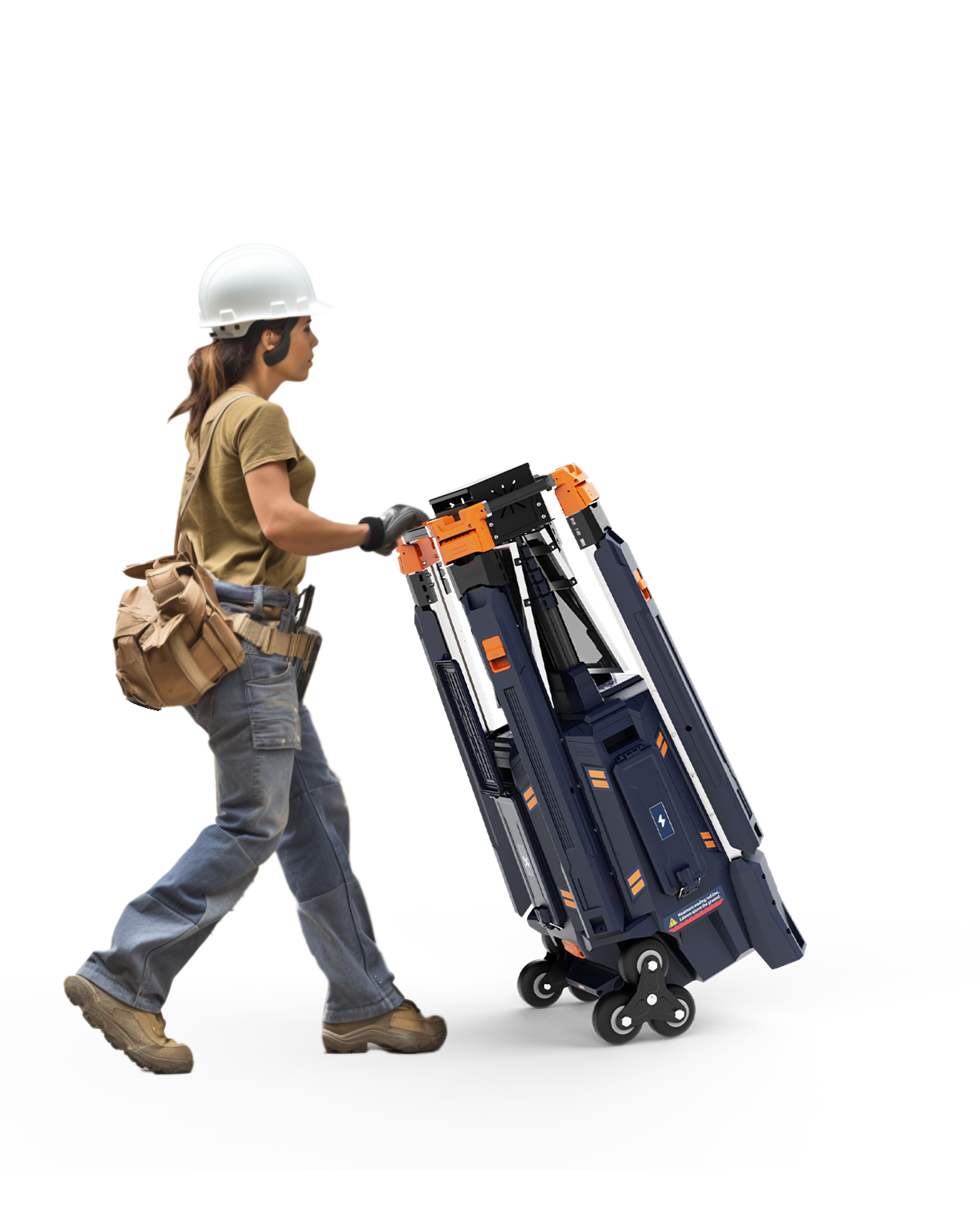

Only one operator is needed to transport, deploy, and adjust the platform.
Climbs heights without a forklift if necessary.
Stays stable on muddy ground with maximum contact surface.
Wading depth up to 10cm refers to the water line mark on the body.
For quick deployment in emergencies this equipment fits easily into standard SUVs for single-person loading.
Ultra-long Endurance
This power platform incorporates a high-capacity battery and an optimized design to achieve extended runtime. It provides a stable power supply for outdoor operations, emergency support, and prolonged use scenarios, significantly reducing the need for frequent charging or battery replacement.
Typical working hours
(D24-500 & maximum brightness)
13.5 – 450 Hours
MAXIMUM OUTPUT POWER
100W
| Power Output | |
|---|---|
| Maximum output power | 100W |
| DC outputs | 12V 9A / 5V 3A |
| USB output | 5V 3A (dual rainproof USB ports) |
| Input | DC 24V — D24-500 battery pack / MC-2H charger / solar |
| AC power option | X5-320-56BH mains power supply driver x 1 |
| Device interfaces | Multiple adapters incl. IR indoor camera, IR outdoor camera, PTZ camera; compatible with most surveillance and electronic devices |
| Battery & Endurance | |
| Battery | D24-500 lithium-ion battery packs (up to 3) |
| Typical working hours | 13.5–450 hours per battery set charge (D24-500 x 3, load dependent) |
| Solar charging | Integrated solar panels provide auxiliary power; supports 24-hour continuous power for ≤6W 12V/5V devices |
| Running costs | 0 diesel cost, 0 trailer cost, 0 maintenance cost, 0 carbon emissions, 0 dB quiet operation |
| Physical | |
| Mast height | 1.3–5.0 m telescopic |
| Maximum device load | 10 kg |
| Dimensions (closed) | H 1305 x D 540 mm |
| Dimensions (open) | H 4950 x W 1085 x D 1110 mm |
| Net weight | 57.3 kg (fittings only, excl. batteries) |
| Mobility | Single-person transport, deployment and redeployment; triple wheel + self-locking legs; fits standard SUVs |
| Mounting | Detachable bracket; left, right, top or triple-side installation; multiple mounting holes, customisable |
| Shipping carton | 640 x 640 x 1460 mm, 81 kg gross (GD-500 + MC-2H + 3x D24-500 kit) |
| Environmental | |
| Ingress protection | IP65 weatherproof, corrosion-resistant |
| Wind resistance | Level 8 winds |
| Wading depth | Up to 10 cm (to water line mark on body) |
| Operating temperature | -10°C to +50°C |
