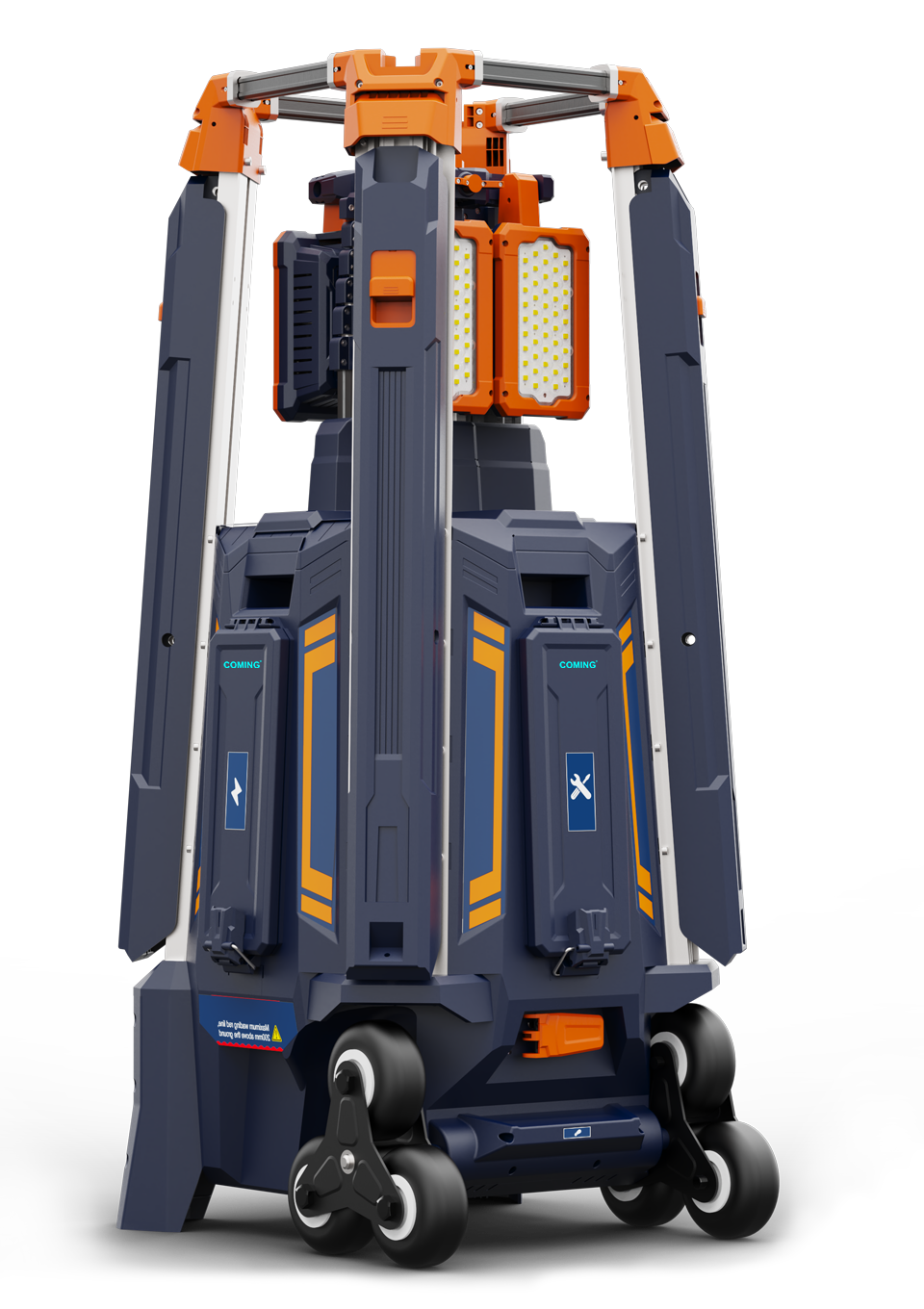

G-COMIN TL-500 Electric Telescopic Light Tower
Battery-powered electric telescopic light tower with up to 35,000 lm on battery (65,000 lm on AC), a 5.3 m electric mast and single-person deployment — a silent, zero-emission alternative to diesel light towers.
Description
The G-COMIN TL-500 (TopGo Series) is a portable, battery-powered LED light tower designed for single-person operation. An intuitive handheld controller electrically raises the telescopic mast from 1.23 m to a maximum height of 5.3 m (a 4.2 m variant is also available), while the fully rotatable lamp head and adjustable beam angle deliver 360-degree site coverage.
Four battery lighting modes let you balance output against runtime: Turbo (35,000 lm, 10+ h), Standard (18,000 lm, 18+ h), Balanced (10,000 lm, 39+ h) and Eco (3,000 lm, 114+ h). Connected to mains via the optional X5-320-56BH AC driver, output rises to a stepless-dimmable 65,000 lm. Three switchable beam patterns — Distance, Mid-range and Close-range — match the light distribution to the task.
Power comes from up to three hot-swappable D24-500 lithium-ion battery packs, each recharging in under 50 minutes, so downtime is minimal. With 0 dB operation and zero fumes, the TL-500 eliminates the diesel, trailer, and maintenance costs of traditional generator light towers.
Built for harsh sites, it is IP65 rated with Level 8 gale-force wind resistance, a 10 cm wading depth, corrosion-resistant construction and a quick-eject mast retraction feature. The triple-wheel coaxial design, multi-level self-locking support legs and dual-axis levelling mechanism handle rough terrain, and at 52 kg (excluding batteries) it fits in a standard SUV.
| Illumination | |
|---|---|
| Maximum output (battery) | 35,000 lm (Turbo mode) |
| Maximum output (AC power) | 65,000 lm, stepless dimmable (X5-320-56BH driver) |
| Lighting modes | Turbo 35,000 lm / Standard 18,000 lm / Balanced 10,000 lm / Eco 3,000 lm |
| Beam patterns | Distance (concentrated), Mid-range (balanced), Close-range (wide diffused) |
| Head adjustment | Fully rotatable lamp head with adjustable beam angle for 360° coverage |
| Power & Endurance | |
| Battery system | Up to 3 x D24-500 lithium-ion packs, hot-swappable |
| Runtime | Turbo 10+ h / Standard 18+ h / Balanced 39+ h / Eco 114+ h |
| Charge time | Under 50 minutes per D24-500 pack |
| AC operation | Optional X5-320-56BH mains power driver |
| Noise level | 0 dB (silent, zero-emission operation) |
| Physical | |
| Mast height | 1.23 m to 5.3 m (electric telescopic; 4.2 m variant available) |
| Net weight | 52 kg (fitting only, excluding batteries) |
| Dimensions (folded) | H 1230 x W 540 x D 600 mm |
| Dimensions (deployed) | H 5300 x W 1090 x D 1110 mm |
| Mobility | 3-wheel coaxial design, multi-level self-locking support legs, dual-axis levelling |
| Deployment | Single-person transport, deployment and adjustment; fits standard SUV |
| Packaging | Carton 1435 x 640 x 640 mm, gross weight 66.5 kg |
| Environmental | |
| Ingress protection | IP65 |
| Wind resistance | Level 8 gale-force winds |
| Wading depth | Up to 10 cm |
| Construction | Corrosion-resistant materials; quick-eject emergency mast retraction |
