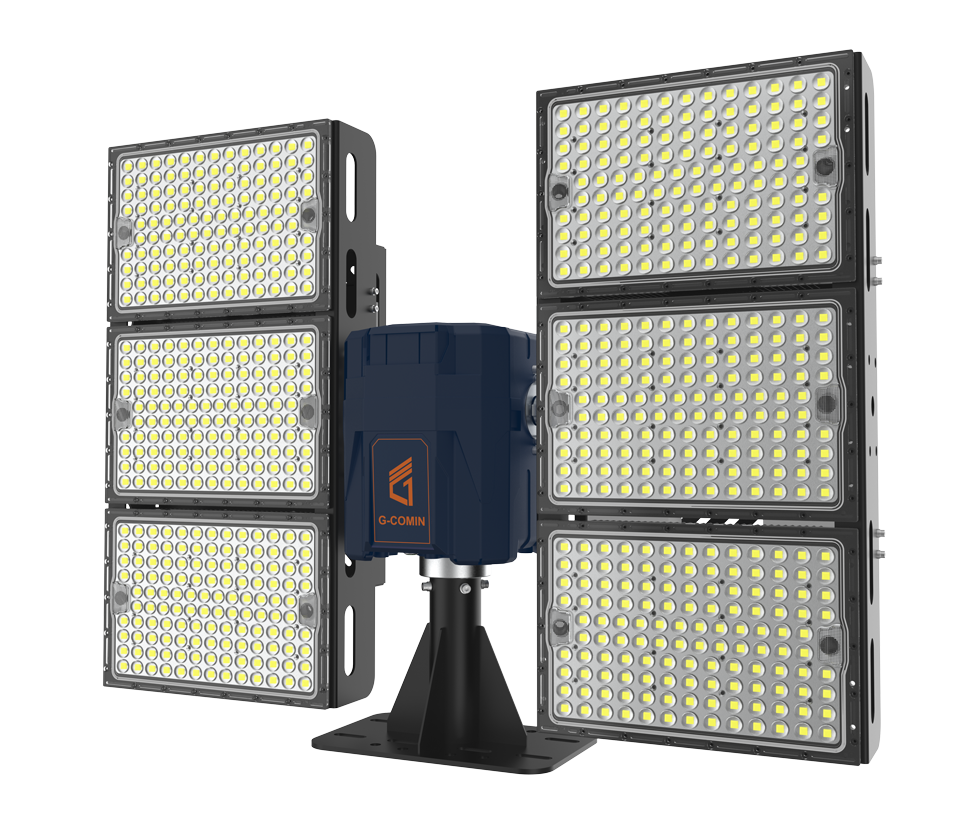

G-COMIN YT-600 Motorized 3-Axis LED Head
The G-COMIN YT-600 is a motorized, remote-controlled LED lamp head with 360° horizontal and 270° vertical rotation, available in 600 W, 1200 W and 1800 W versions at 180 lm/W. It retrofits onto most diesel-powered light tower masts without changing the base or bracket.
Description
The G-COMIN YT-600 Motorized 3-Axis LED Head is a high-output lighting unit designed for mobile light towers, engineering and emergency vehicles, temporary stands and fixed installations. Built by Shenzhen Coming Technology, it delivers powerful LED illumination with smooth motorized movement, so the beam can be placed precisely where it is needed without anyone climbing the mast.
The head rotates a full 360° horizontally and up to 270° vertically, driven from a wireless handheld controller with dual joysticks and a one-touch home button, effective at ranges up to 60 metres in open areas. Intelligent lighting modes include manual aiming, an automatic return-to-home position, and a unique beacon mode that auto-cruises through a 360° horizontal patrol – useful for perimeter security, yards and ports.

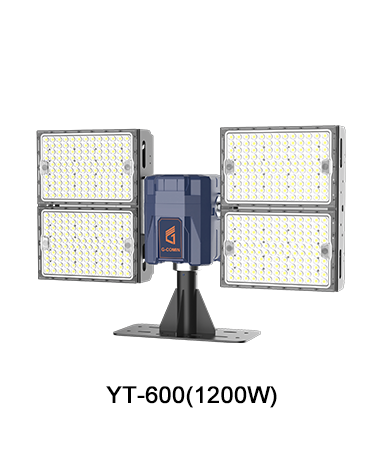

Three wattage options are offered – 600 W, 1200 W and 1800 W – all built on high-efficiency LEDs rated at 180 lm/W (up to 324,000 lumens on the 1800 W model), with a choice of 30°, 60° or 90° beam angles and 1–10 V dimming. A 5000 K colour temperature is standard, with 2700 K–6500 K available, and the unit accepts a wide AC 100–480 V input.

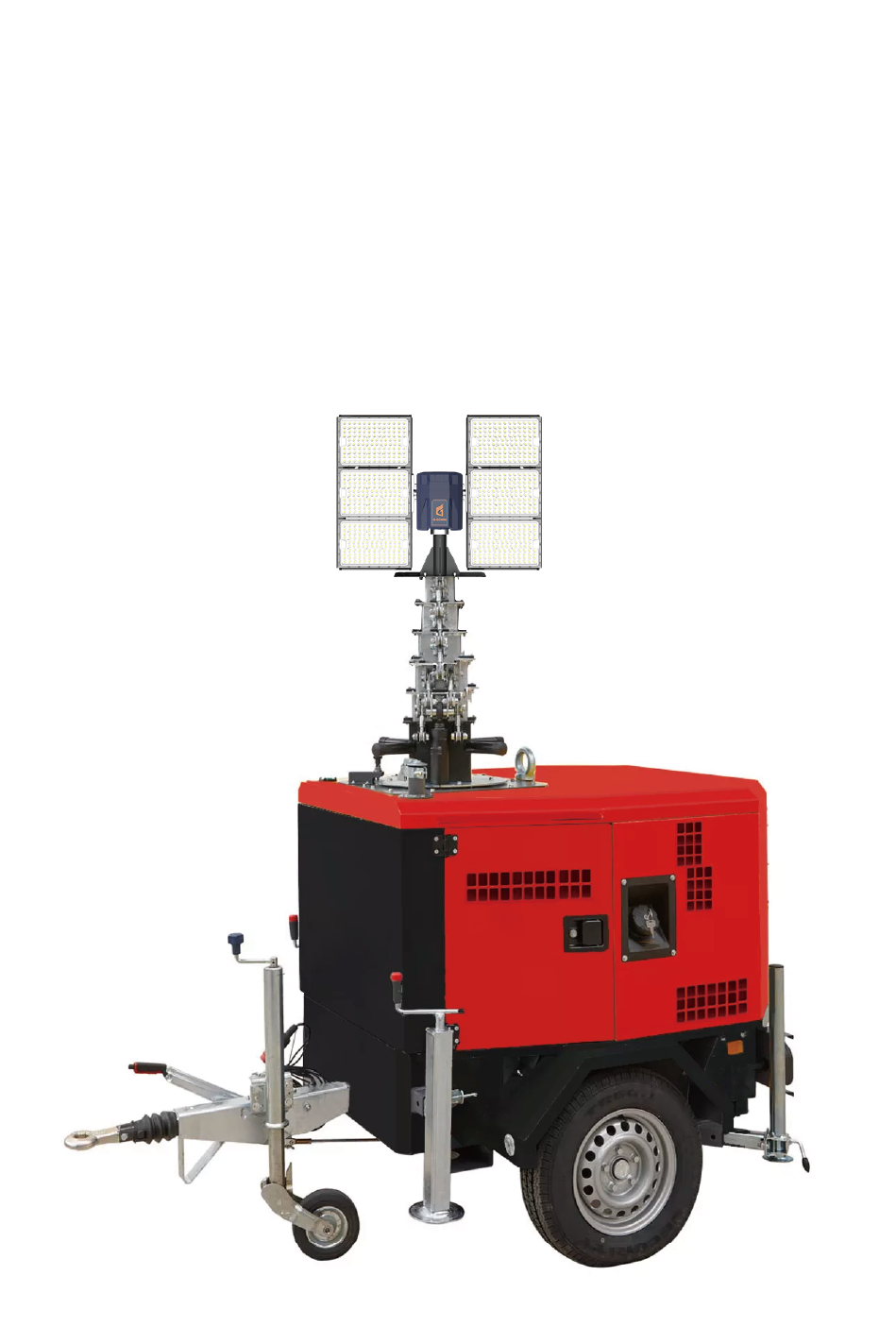

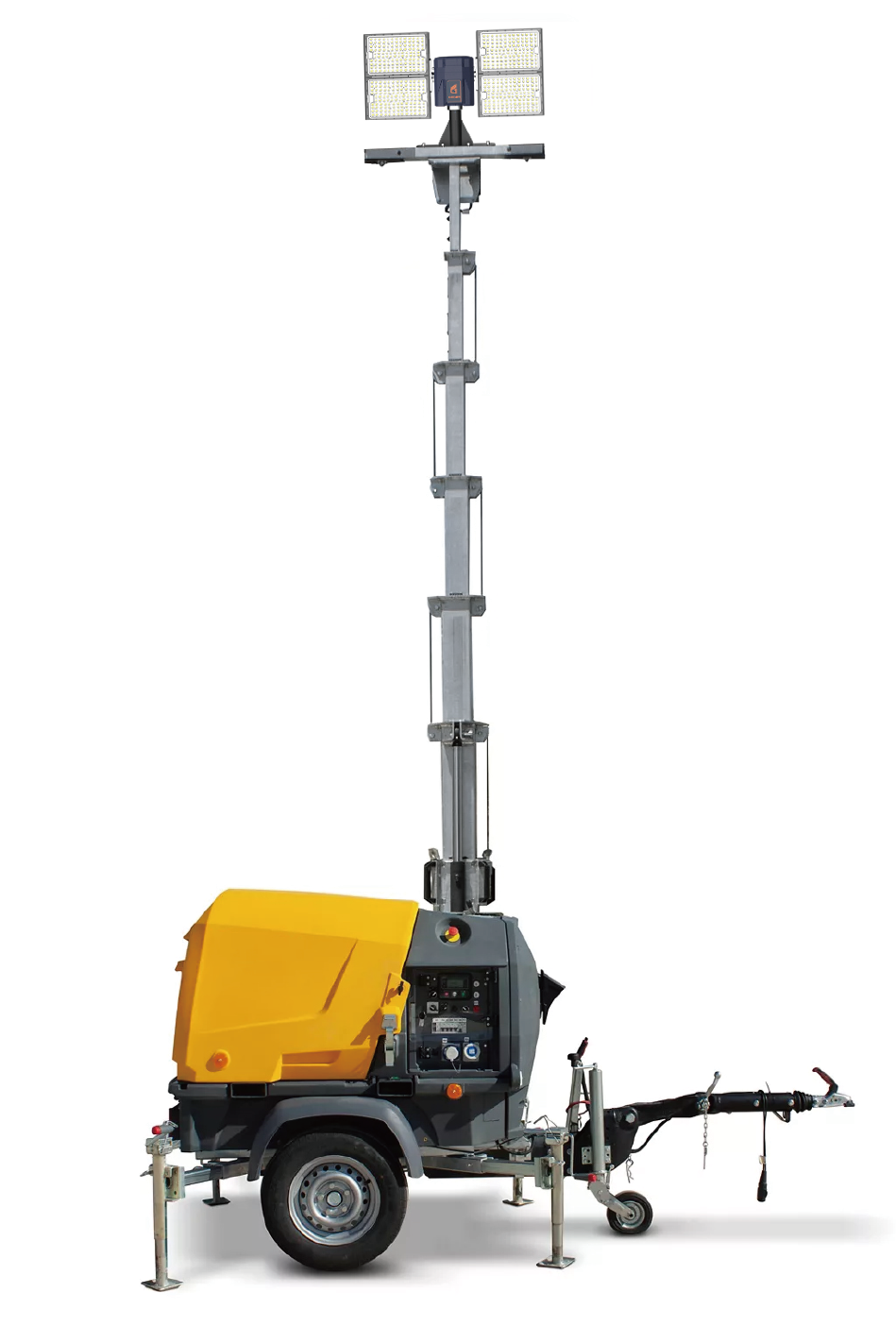

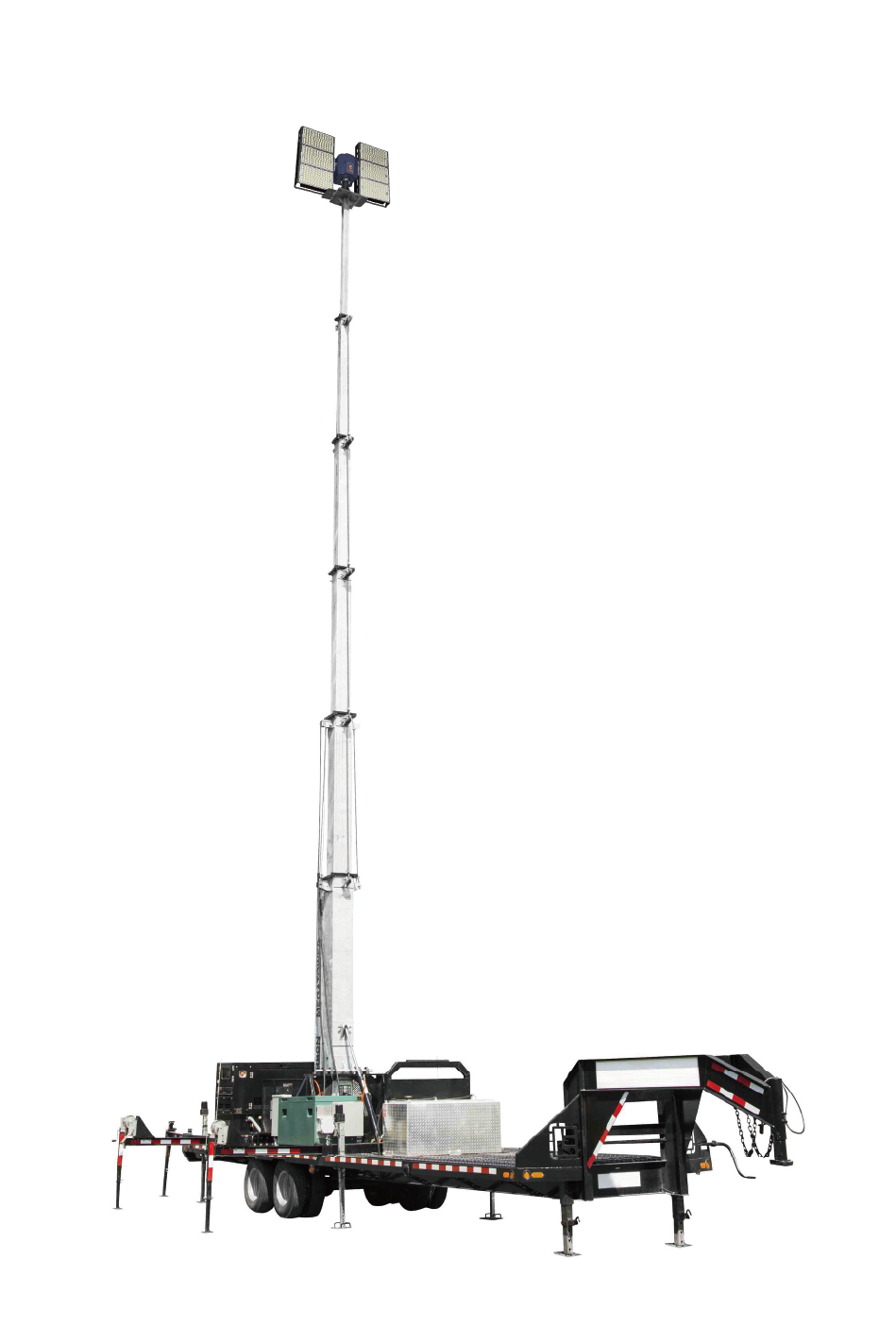

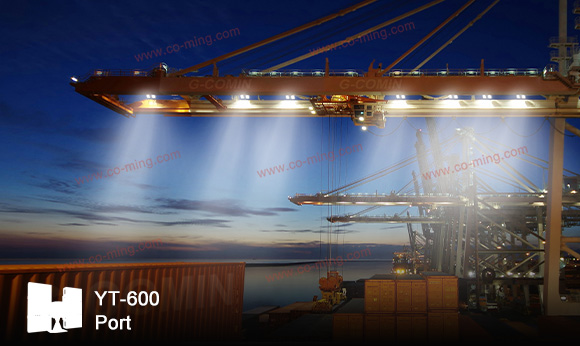

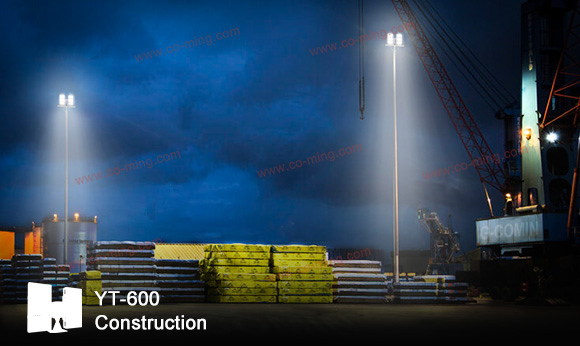

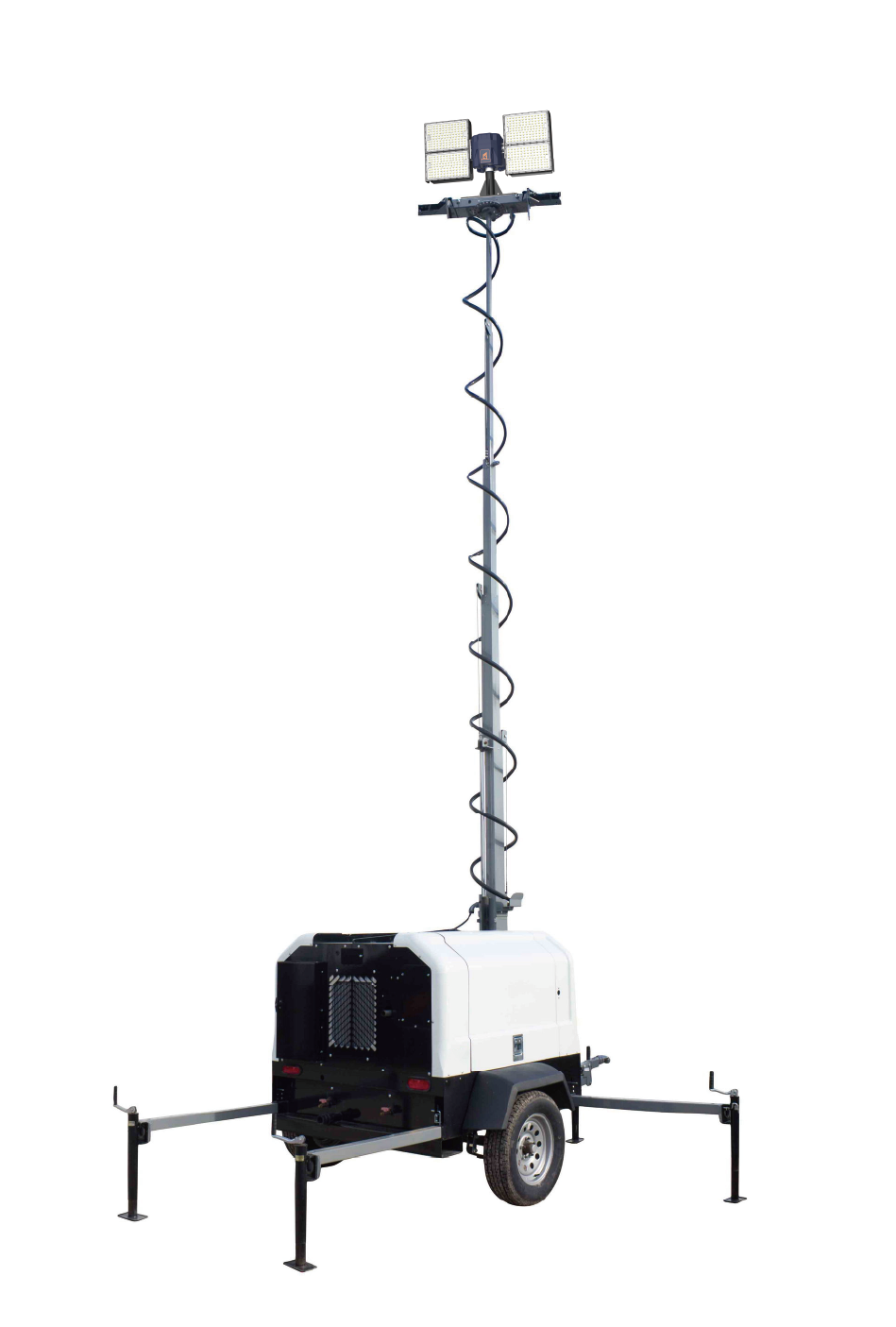

Installation is plug-and-play: the YT-600 is compatible with major diesel-powered light tower brands and replaces the original lamp head without modifying the tower base or bracket. It also suits professional fixed installations on streetlight poles, port watchtowers, building facades and ceilings. An IP65 rating and a -40°C to +60°C operating range make it dependable in mining, construction, rail, maritime and rescue environments.
| Illumination | |
|---|---|

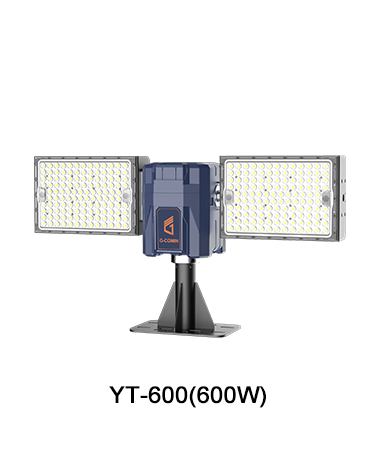

| Power options | 600 W / 1200 W / 1800 W |
| Luminous efficacy | 180 lm/W |
| Maximum output | Up to 108,000 lm (600 W) / 216,000 lm (1200 W) / 324,000 lm (1800 W) |
| Colour temperature | 5000 K standard (2700 K–6500 K available) |
| Colour rendering | Ra > 70 |
| Beam angles | 30° / 60° / 90° |
| Dimming | 1–10 V dimmable |
| Lighting modes | Manual aiming, home position, automatic 360° beacon/patrol mode |
| Motion & Control | |
| Horizontal rotation | 360°, motorized with instant rotate/stop |

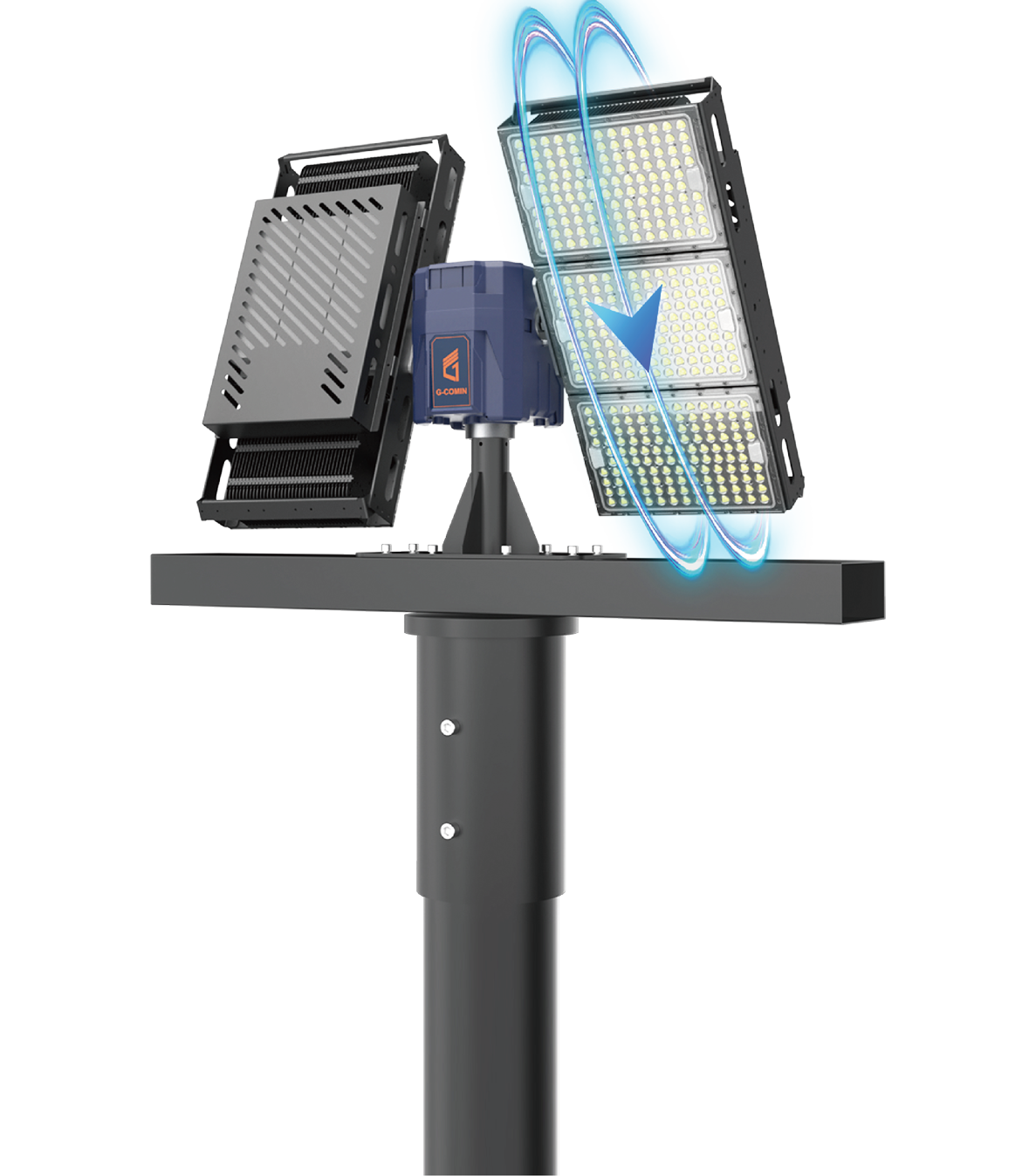

| Vertical rotation | 270° |
| Controller | Wireless handheld controller with dual joysticks, home button and indicator |
| Remote range | Up to 60 m (open area) |
| Patrol mode | 360° horizontal patrol (beacon mode) |
| Multi-head operation | Multi-head synergy system |
| Power & Endurance | |
| Power supply | AC 100–480 V (1800 W version available in three-phase) |
| Power source | Mains/generator AC supply; integrates with diesel-powered mobile light towers |
| Physical | |
| Dimensions | 792 x 222 x 417 mm (600 W) / 792 x 222 x 515 mm (1200 W) / 792 x 222 x 612 mm (1800 W) |
| Net weight | 16 kg (600 W) / 24.2 kg (1200 W) / 32 kg (1800 W) |
| Mounting | Retrofits most diesel-powered light tower masts without changing base or bracket; fixed installation on poles, watchtowers, facades and ceilings; mobile use on vehicles and temporary stands |
| Carton dimensions | 900 x 500 x 330 mm (600 W) / 900 x 600 x 330 mm (1200 W) / 900 x 700 x 330 mm (1800 W) |
| Gross weight | 22 kg (600 W) / 34 kg (1200 W) / 42 kg (1800 W) |
| Environmental | |
| Ingress protection | IP65 |
| Operating temperature | -40°C to +60°C |
| Operating humidity | 1–98% |
