airpointer_logoThe Airpointer®, designed and manufactured by recordum Messtechnik GmbH (Austria), is a compact, modular multi-gas air quality monitoring system. It is the world’s first ‘out-of-the-box plug and play’ AQ monitoring system implementing USEPA approved/EU certified reference methods gas analysers. Thanks to its reduced size, no floor/road space is needed. It is easy to transport and has maintenance costs and carbon footprint reduced up to 90%.

  • The airpointer‘s modular design comprising a base unit, analyzing modules and sensor modules allows for a configuration according to different application requirements.
  • The airpointer‘s compact design enables it to be installed almost everywhere. Due to its optimized thermal management, the airpointer consumes less power compared to conventional monitoring stations.
  • The airpointer offers a choice of analysis modules using type approved reference methods for monitoring airborne pollutants (SO2, NO2/NOX, CO, O3, and PM) classified as relevant by the EU, the WHO, the US-EPA and further responsible organizations all over the world.
    A fast optical system or an approved PM analyzer is used for monitoring PM.
  • The integrated data management systemrecords monitoring data of the airpointer‘s own analysis modules as well as various external third-party sensors.
  • An internal web server enables data retrieval by using any Internet connection. Data are available worldwide via access authorisation and can be presented in clearly arranged graphics. All parameters can be displayed locally or online.

Airpointer Module

Around 400 Airpointer units are currently deployed around the world for a wide range of air quality monitoring applications. A monitoring network made up of 54 airpointer units specially configured for tropical climates is currently being installed by Bangkok Metropolitan Administration (BMA).

Category: Tag:

Description

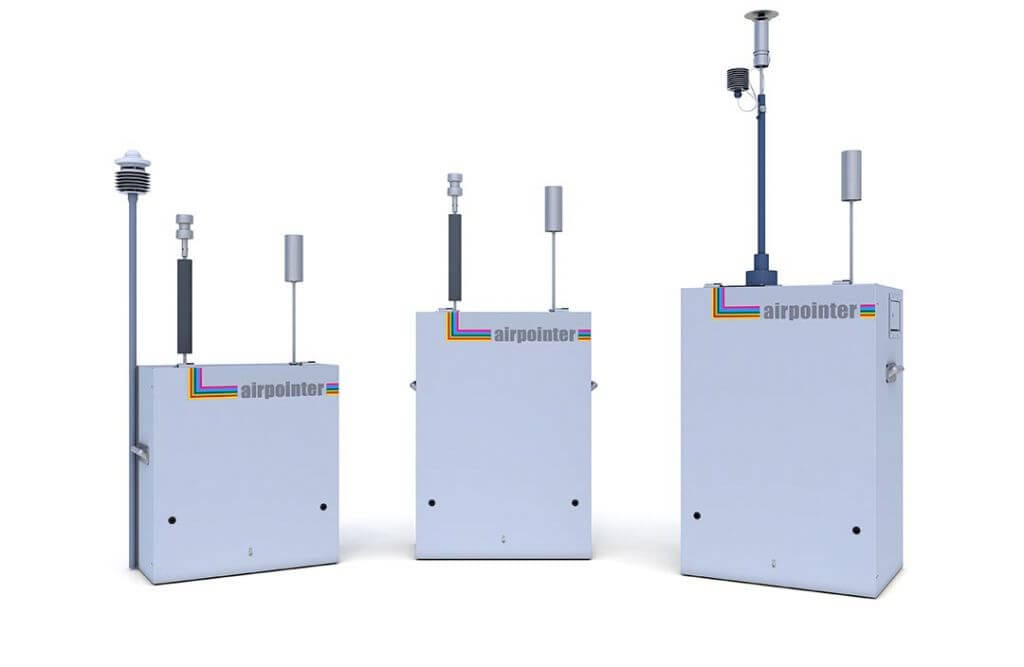

3baseunits

Configuration Airpointer® -2D Airpointer® -4D Airpointer® +PM
Pollutants 2 criteria pollutants among: NO/NO2/NOX (NH3) O3 SO2 (H2S) CO 4 criteria pollutants NO/NO2/NOX (NH3) O3 SO2 (H2S) CO 4 criteria pollutants NO/NO2/NOX (NH3) O3 SO2 (H2S) CO with USEPA-approved PM10/PM2.5 monitor
Dimension 890/782/400 mm 1120/782/400 mm 1200/782/615 mm
Weight 65.8kg 73.9kg 110kg
Power Consumption Max. 670W Max. 670W Max. 1100W

More sensor modules:

  • Photoionisation detector (PID) for volatile organic compounds (VOC)
  • Nephelometer for indicative PM monitoring (PM10, PM2.5)
  • Meteorological sensors: wind direction, wind velocity, temperature, air pressure, relative humidity, precipitation, made by various manufacturers
  • Traffic data sensors: traffic count, made by various manufacturers
  • Noise sensors, made by various manufacturers
  • Electrochemical sensors for formaldehyde, ethane, chlorine…
  • For industrial applications, environmental hygiene, and indoor air quality monitoring (IAQ)
  • Sensors for monitoring indoor CO2 (IAQ)
  • Navigation system (GPS) for linking monitoring data with geographical data

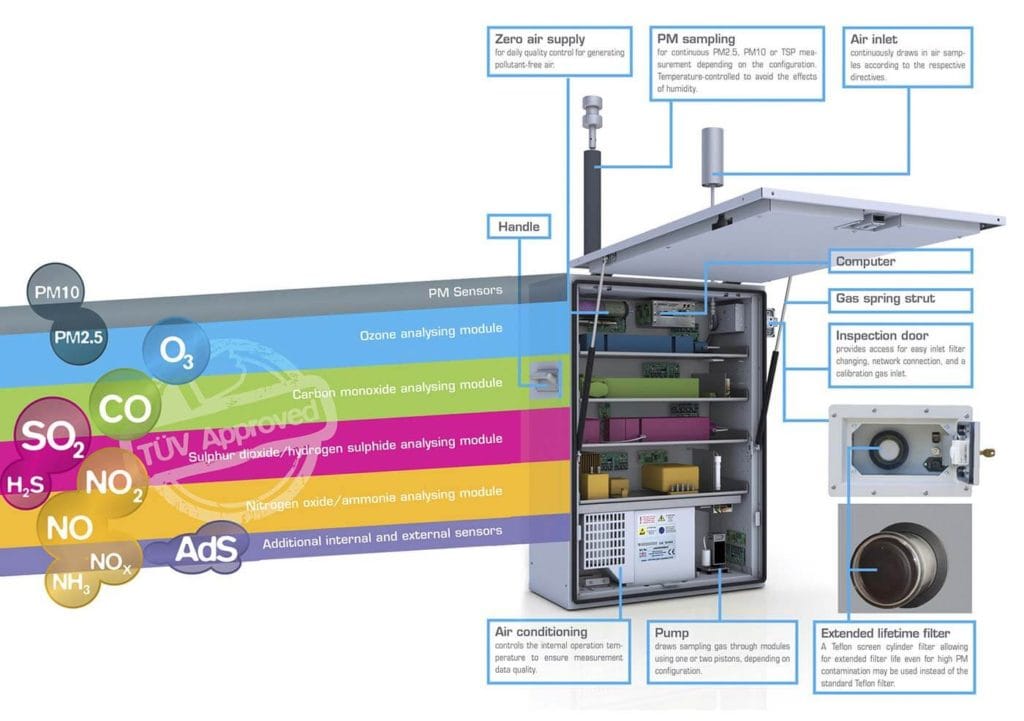

Airpointer_Module_booklet

Construction:

  • Well-isolated double aluminium construction
  • Standard monitoring modules on removable drawers
  • Rugged, inconspicuous burglar-proof design

Standard equipment:

  • Internal air conditioning and temperature control
  • Maintenance door
  • Cylinder lock (standard)
  • Zero air supply

Operating temperature:

  • -20 °C/-4°F to +42 °C/108°F (optional heating for down to -40 °C/-40°F)

Options:

  • Various types of mounting brackets
  • Wireless communication (GPRS, 3G)
  • Sample gas conditioning (high relative humidity, high PM exposure)
  • Integration of external devices and instruments (e.g. 4-20 mA, RS-232, Modbus via IP)
  • Solutions to communicate with external data systems (e.g. TCP-IP, Modbus via IP, RS-232, 4-20 mA)
  • Various base frames and handling devices for on-site operation (roadside, workshop, indoor, pickup truck, trailer)

Applications:

Fotolia_28300123_L+AirpointerFotolia_18298693_L+Airpointer
Fotolia_6658091_XL+Airpointer_V2800w-airpointer_rijeka_demo_sept_07_19

  • Reliable point of interest monitoring: Oil & Gas, Power Production, Iron & Steel, Chemical & Petrochemical

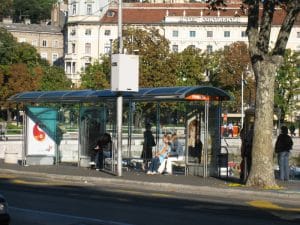

  • Road traffic-related monitoring
  • Hot spots and indoors
  • Mobile operation
  • Regulatory Assessment
