Vaisala HMW110 / HMD110 / HMS110 High-Accuracy HVAC Humidity Transmitters
High-accuracy HUMICAP® 180R humidity and temperature transmitters for HVAC in three mounting styles — wall (HMW110/112), duct (HMD110/112) and outdoor with radiation shield (HMS110/112). ±2 %RH, 4 … 20 mA or Modbus RTU, 3-point traceable calibration.
Description
One measurement platform for the whole air-handling system: the same HUMICAP® 180R sensor and electronics in a wall-mount transmitter for rooms, a duct-mount probe for supply and return air, and an outdoor version with integrated radiation shield for fresh-air and economiser reference. Temperature-only versions (TMW/TMD) are also available.
Key features
- ±2 %RH accuracy, Pt1000 temperature sensor (±0.2 °C at +20 °C)
- 3-point traceable RH calibration and 1-point T calibration, certificate included
- 4 … 20 mA loop-powered or Modbus® RTU output
- Display and non-display models; M12 connector option on wall models
- Calculated dew point, wet bulb temperature and enthalpy
- IP65 housing; outdoor HMS110 with integrated radiation shield
Models
| HMW110 / HMW112(D) | Wall-mount RH+T; 110 = configurable 4 … 20 mA or Modbus RTU |
|---|---|

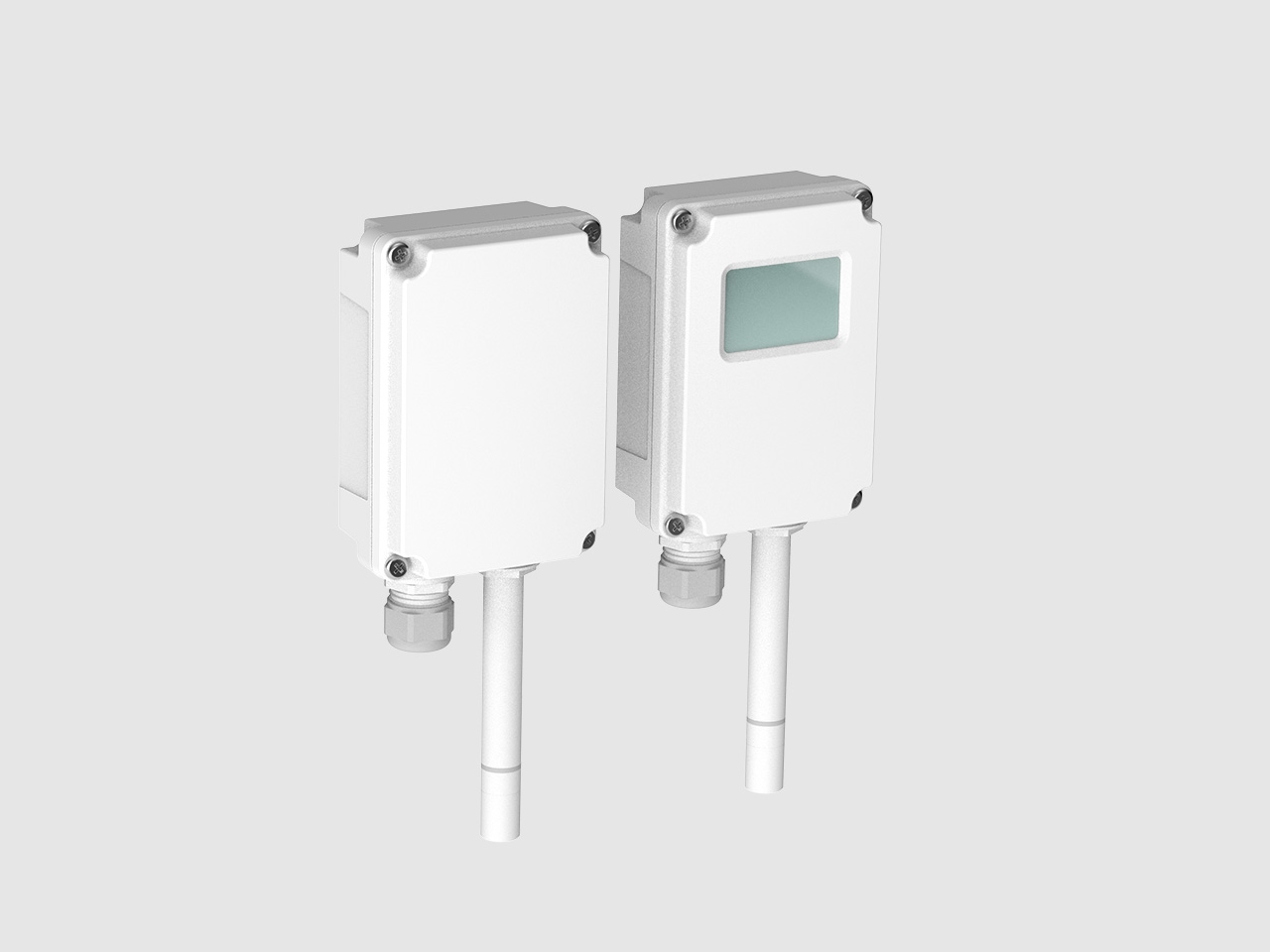

| HMD110 / HMD112(D) | Duct-mount RH+T |

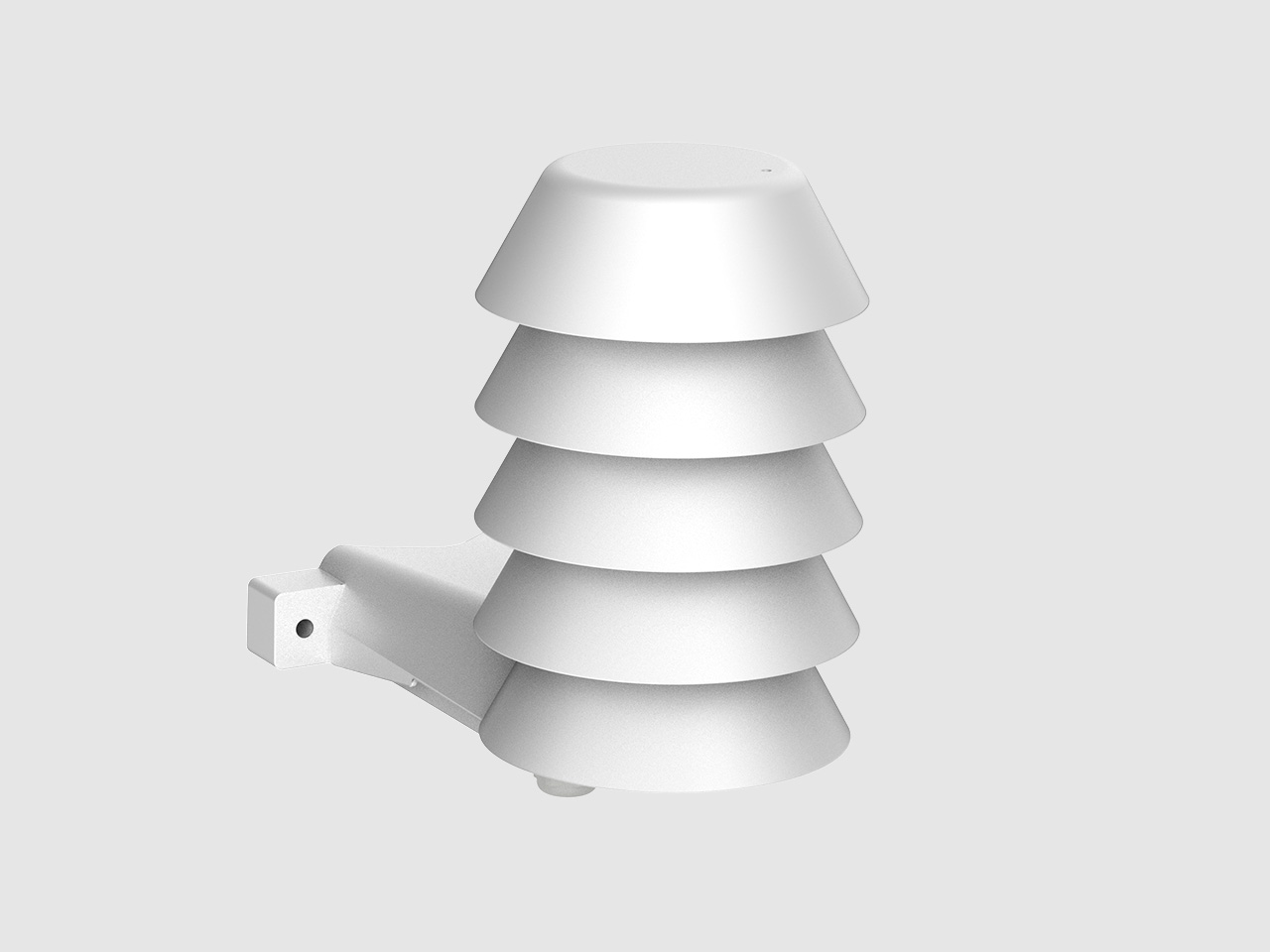

| HMS110 / HMS112 | Outdoor RH+T with radiation shield |
| TMW110/112, TMD110/112 | Temperature-only versions |
Riajati supplies Vaisala instruments in Malaysia — send us your measurement points, required outputs and quantities through the Enquiry tab for a quotation.
| Relative humidity | |
|---|---|
| Measurement range | 0 … 100 %RH |
| Accuracy +10 … +30 °C | ±2 %RH (0 … 90 %RH), ±3 %RH (90 … 100 %RH) |
| Accuracy −20 … +10 °C, +30 … +60 °C | ±3 %RH (0 … 90 %RH), ±4 %RH (90 … 100 %RH) |
| Stability (typical HVAC) | ±0.5 %RH/year |
| Sensor | HUMICAP® 180R (HUMICAP® 180V option on wall/duct models) |
| Temperature | |
| Measurement range | −40 … +60 °C |
| Accuracy at +20 °C | ±0.2 °C |
| Sensor | Pt1000 RTD Class F0.1, IEC 60751 |
| Calculated parameters (at +20 °C, 80 %RH) | |
| Dew point | ±0.7 °C |
| Wet bulb temperature | ±0.5 °C |
| Enthalpy | ±1.6 kJ/kg |
| Inputs and outputs | |
| Analog | 4 … 20 mA loop powered; 20 … 28 V DC at 600 Ω, 10 … 28 V DC at 0 Ω |
| Digital | RS-485 Modbus® RTU, 19200 bps N 8 2; 10 … 28 V DC |
| Environment and mechanics | |
| Operating temperature | −40 … +60 °C (−5 … +60 °C with display) |
| Max. wind / flow speed | 30 m/s |
| IP rating | IP65 |
| Housing | PC + 10 % GF, UL-V0, white |
| Compliance | CE, RCM; EN 61326-1 industrial environment |
