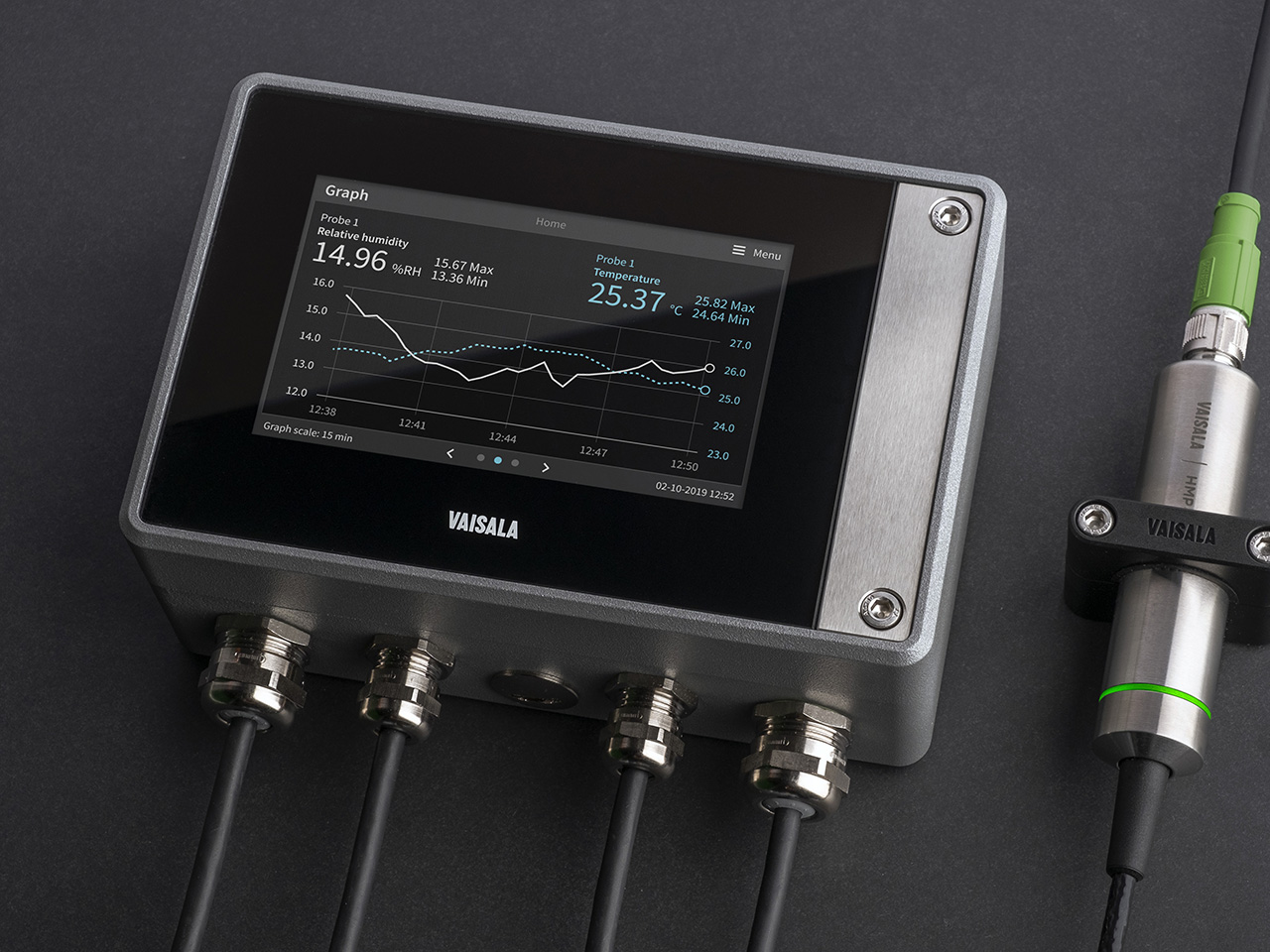

Vaisala Indigo520 Supervisor for Daisy-Chained Probes

Host unit for data-hall monitoring: two daisy chains of up to 50 compact XMP10, HMP110, HMP60 or TMP115 probes each (100 probes total), presented to the BMS over Modbus TCP. 5″ touchscreen, web interface, relays, PoE, PELV or mains powering.

SKU: INDIGO520-SUP Category: Environmental Tag: Vaisala

Description

Rack-level monitoring means many measurement points. The Indigo520 Supervisor gathers them on two daisy chains of up to 50 compact probes each and hands every reading to the BMS over a single Modbus TCP connection. The local touchscreen shows measurements, probe status and alerts, and probe-swap features make calibration rotations quick.

Key features

2 daisy chains, up to 50 probes per chain (100 probes total)
Compatible probes: XMP10 series, HMP110/HMP110T/HMP113/HMP115, HMP60/HMP63, TMP115
Modbus TCP (port 502) for BMS / DCIM integration; HTTPS web interface
5″ capacitive touchscreen for monitoring, probe management and alert visualisation
2 SPDT relays (not on PoE version)
Power options: 15 … 35 V DC / 24 V AC, 100 … 240 V AC, or PoE IEEE 802.3at

Riajati supplies Vaisala instruments in Malaysia — send us your measurement points, required outputs and quantities through the Enquiry tab for a quotation.

Interfaces
Ethernet	10BASE-T / 100BASE-TX, RJ45
Protocols	Modbus TCP (port 502), HTTPS (port 8443)
User interfaces	Web interface, 5" capacitive touchscreen
Relays	2 × SPDT, 30 W, 1 A, 40 V DC / 28 V AC
Powering
PELV version	15 … 35 V DC, 24 V AC ±20 % 50/60 Hz, max. 2 A
AC mains version	100 … 240 V AC 50/60 Hz, max. 1 A
PoE version	IEEE 802.3at Type 2 Class 4, max. 25.5 W
Environment
Operating temperature	−20 … +55 °C
Operating humidity	0 … 100 %RH; outdoor and wet-location use
IP rating	IP66, UL 50E Type 4
Mechanics and compliance
Housing	AlSi10Mg aluminium, strengthened-glass window (IK08)
Dimensions / weight	142 × 182 × 67 mm; 1.5 kg
Compliance	CE, China RoHS, FCC, RCM, UKCA; UL Listed; IEC/EN 61010-1; DNV type approval
