Showing all 12 results
High-performance duct transmitter for supply and return air in demanding HVAC and light industrial applications. ±1.5 %RH and ±0.1 °C, cast-aluminium IP66 body, 4 … 20 mA, 0 … 10 V, Modbus RTU or BACnet MS/TP.
Miniature HUMICAP® humidity and temperature probe in an IP65 stainless-steel body. ±1.5 %RH, −40 … +80 °C, low power and fast start-up, analog voltage or Modbus RTU output, M8 quick connector. Compatible with Origo10, Indigo520 Supervisor and VDL200.

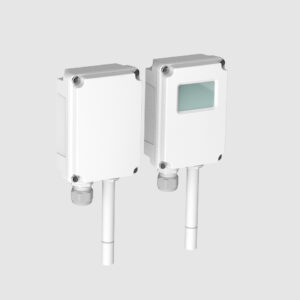

High-accuracy HUMICAP® 180R humidity and temperature transmitters for HVAC in three mounting styles — wall (HMW110/112), duct (HMD110/112) and outdoor with radiation shield (HMS110/112). ±2 %RH, 4 … 20 mA or Modbus RTU, 3-point traceable calibration.

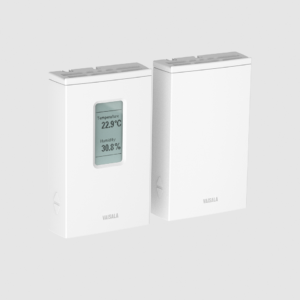

Wall-mounted HUMICAP® humidity and temperature transmitter for demanding indoor HVAC spaces — data halls, laboratories, museums and archives. Up to ±1.7 %RH accuracy, user-exchangeable measurement module, analog or Modbus RTU output and a traceable calibration certificate.
Host unit for data-hall monitoring: two daisy chains of up to 50 compact XMP10, HMP110, HMP60 or TMP115 probes each (100 probes total), presented to the BMS over Modbus TCP. 5″ touchscreen, web interface, relays, PoE, PELV or mains powering.
Modular wall or duct HVAC transmitter with interchangeable plug-in probes for humidity, temperature, CO₂ and dew point. Analog, Modbus RTU or BACnet MS/TP outputs, optional 4-parameter display, IP65 — the current Vaisala platform for new HVAC and data-centre projects.
Low differential-pressure transmitters for room pressure cascades, raised-floor plenums, filters and fans. PDT101: ±60 / ±125 Pa or 0 … 500 Pa, 0.4 % span. PDT102: ±50 Pa at 0.25 % or 0.5 % span for cleanrooms and critical spaces.
High-accuracy immersion temperature transmitter for chilled-water and heating-water circuits in HVAC and data-centre cooling plants. ±0.1 °C, −40 … +120 °C, fast response, thermowell installation, 4 … 20 mA or Modbus RTU.
Independent environmental monitoring for data halls, UPS rooms and remote sites: viewLinc Enterprise Server software for records, alarms and reports, with VDL200 Power-over-Ethernet loggers taking up to 4 humidity, temperature or CO₂ probes each and buffering 30+ days locally.
With a proven track record of successful installations, the Vaisala Wind Set WA15 has earned its reputation as the industry standard in the wind sensor market. The WA15 consists of a Vaisala Anemometer WAA151, a Vaisala Wind Vane WAV151, an optional crossarm, a power supply and cabling. Anemometer with Excellent Linearity The WAA151 is a fast response, low threshold anemometer. Three lightweight, conical cups mounted on the cup wheel, provide excellent linearity over the entire operating range, up to 75 m/s. A wind-rotated chopper disc attached to the shaft of the cup wheel cuts an infrared light beam 14 times per revolution. This generates a pulse output from the phototransistor.
The Vaisala Weather Transmitter WXT520 measures barometric pressure, humidity, precipitation, temperature, and wind speed and direction.
Miniature humidity and temperature probes for rack inlets, enclosures and tight spaces. Up to ±1 %RH and ±0.1 °C, Modbus RTU or voltage outputs, M8 connector, IP65 metal or plastic body. Works stand-alone, with Origo10 or daisy-chained on Indigo520 Supervisor.
